BFab DC Motor Driver Module for Raspberry Pi Pico, Driving up to 4X DC Motors Suitable for 2WD or 4WD Driving, I2C Control Interface 5V Regulator, up to 3A Output Current
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

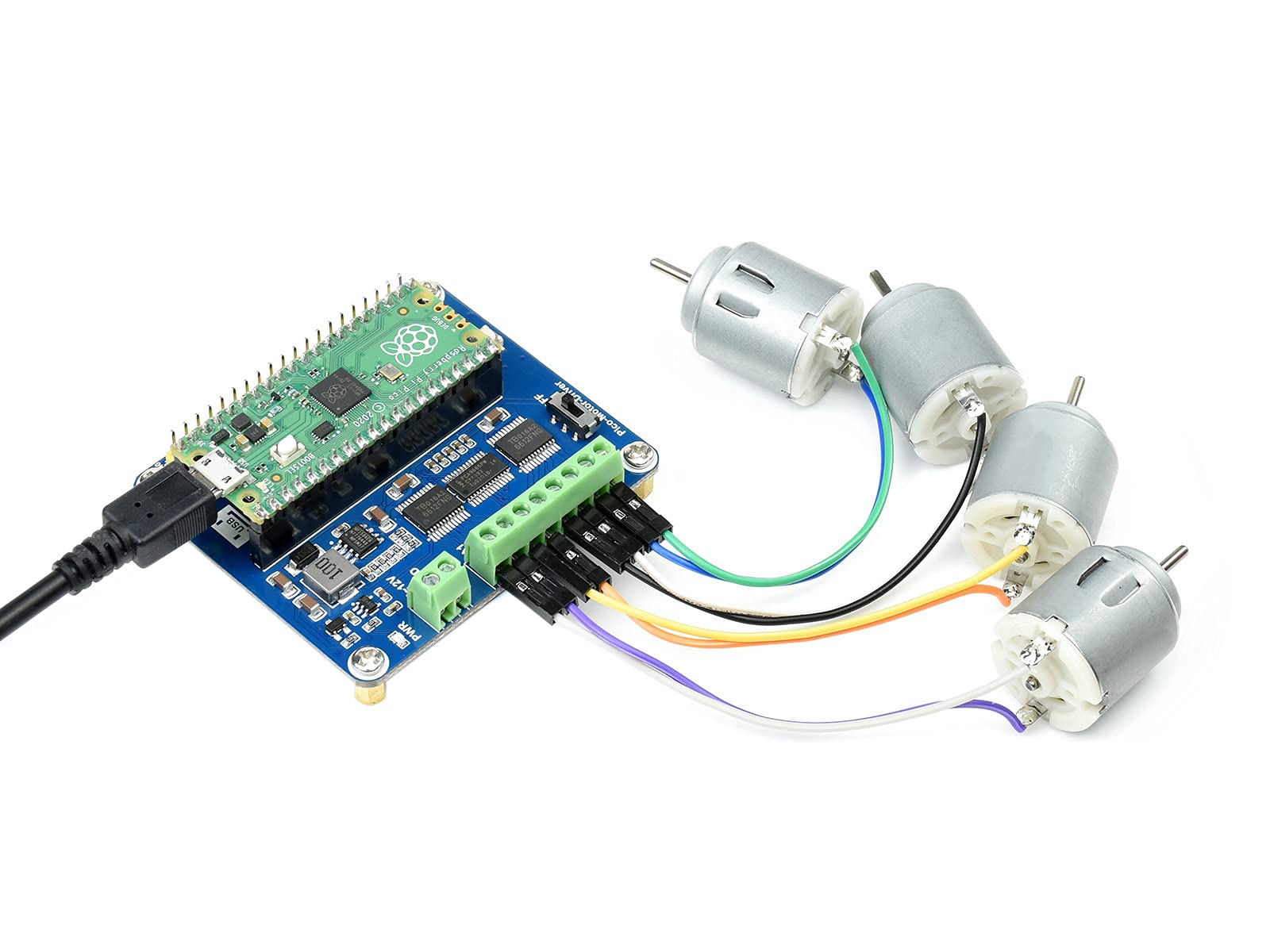

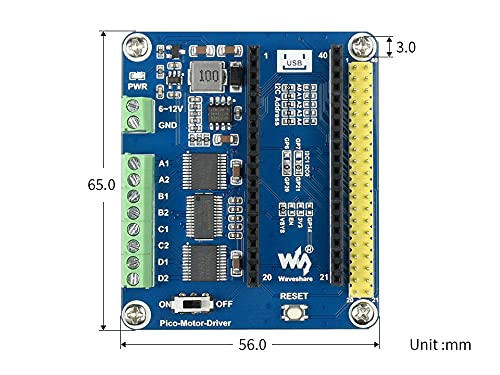

•【DC Motor Driver Module for Raspberry Pi Pico】Onboard female pin header for direct attaching to Raspberry Pi Pico,driving up to 4x DC motors,suitable for 2WD or 4WD driving
•【PWM driver/Motor driver】Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed. Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating.
•【Integrates 5V regulator】Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal. Logic level :3.3V.

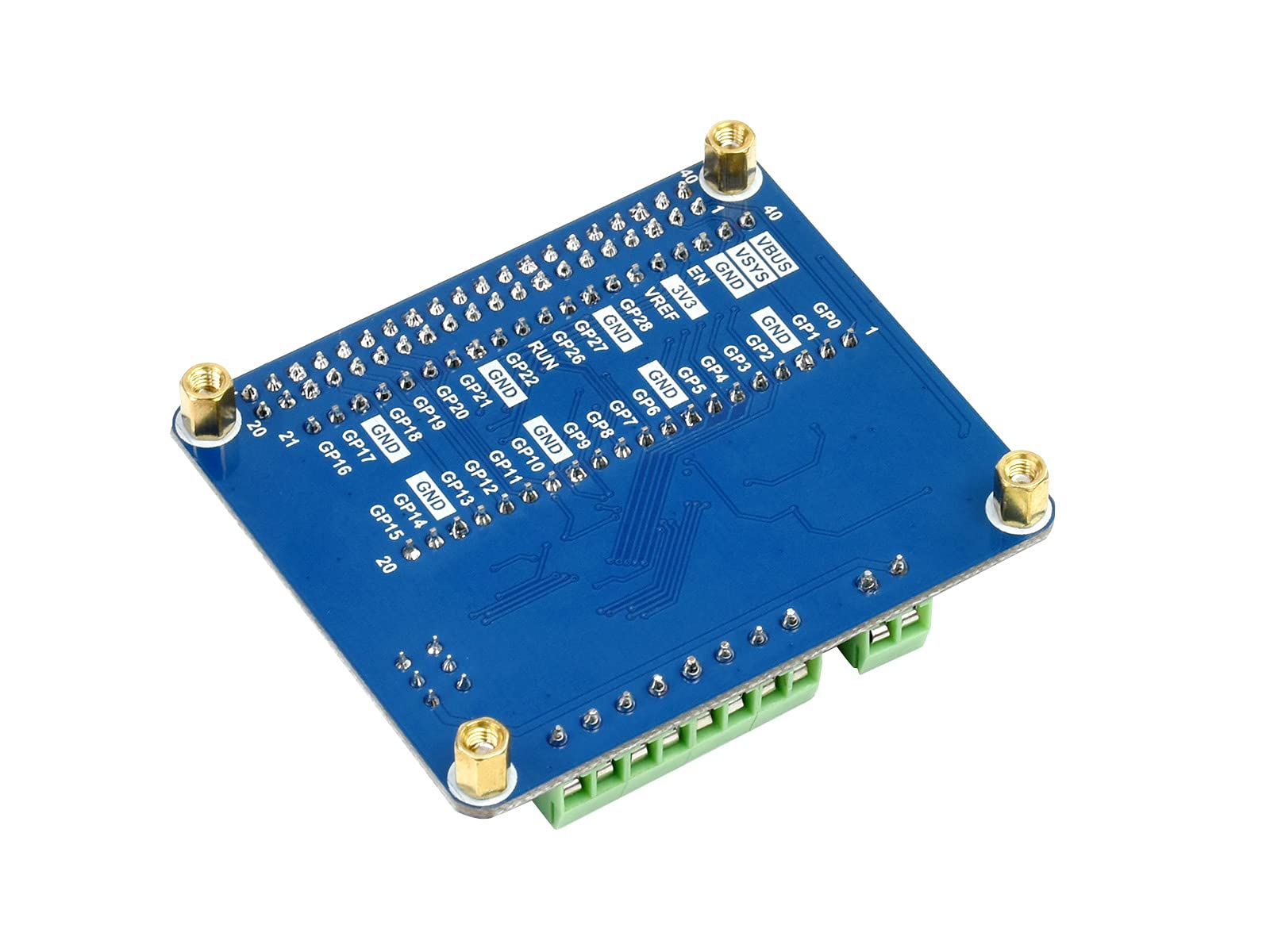

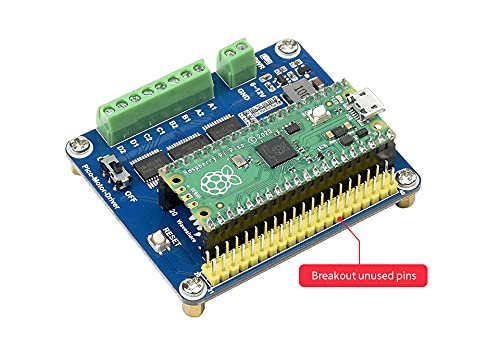

•【I2C Control Interface 】I2C controlled, supports 32x different I2C addresses by setting the 5 address jumpers. Breakout unused pins of Pico for easy extension.
