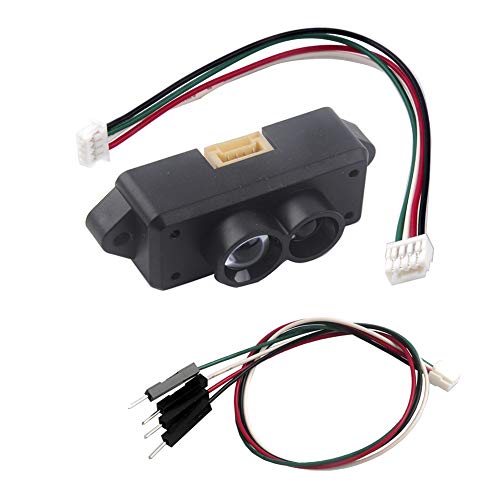

Benewake TFmini-S Lidar Range Finder Sensor Module Single-Point Micro Ranging Module for Arduino Raspberry Pi Pixhawk 4.5-6V UART I2C Interface
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•How to work with pixhawk : https://discuss(dot)ardupilot(dot)org/t/avoidance-experiments-with-the-poc-and-benewake-tfmini/25277；How to use with raspberry pi: https://github(dot)com/TFmini

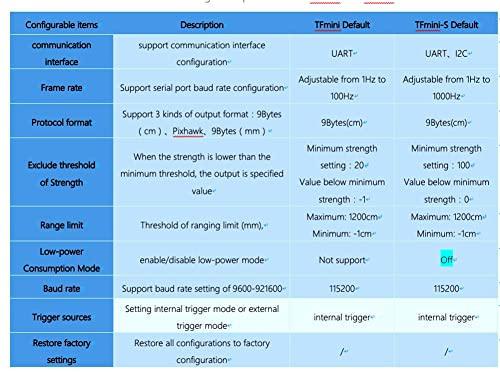

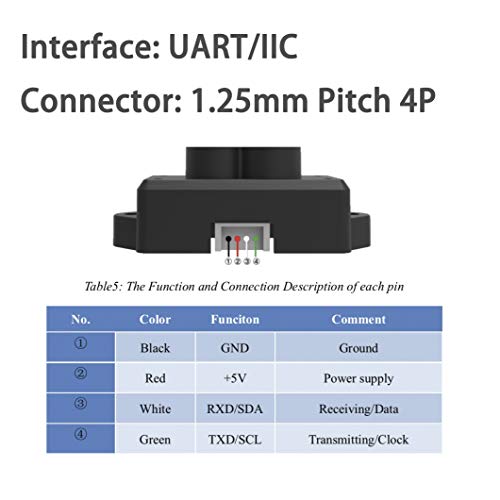

•Communication interface : UART/I2C, Default: UART. If you need I2C, pls send configuration commands to set (After connection enter: 5A 05 0A MODE SU where MODE = 0 (UART) or 1 (IIC) and SU stands for checksum. Important: After sending the parameter configuration command, be sure to send the "Save Configuration (5A 04 11 6F)" command, otherwise the parameters will be reset when the product is connected again.)

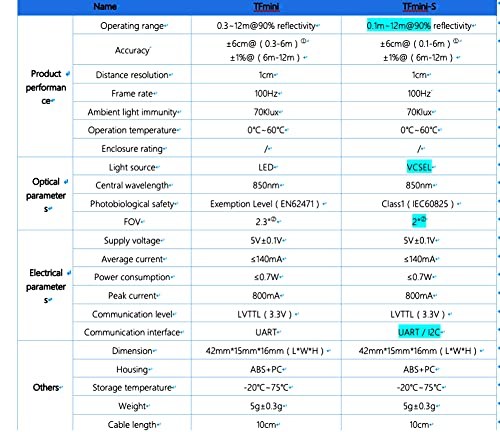

•Operating Range : 0.1-12m, Frequency: 100Hz(1-1000Hz adjustable), Light source:VCSEL, Applicable voltage range: 4.5-6V
•Applications: Traffic Monitoring, Obstacle detection, Obstacle detection, Level measurement, Smart device, Security and obstacle avoidance etc.
