AVMATRIX Living Streaming Video Switcher HVS0403U Micro 4 Chan | Shop The World
From USA
NewLILLIPUT
AVMATRIX Living Streaming Video Switcher HVS0403U Micro 4 Channel SDI HDMI Live Streaming for TV Broadcasts
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Audio MIXING /AFV The switcher can mix 2 HDMI and 2SDI embedded audio and 2 external analog audios (Mic/ Line-level) into the PGM out. User can turn on/off or adjust volume or audio delay for each audio independently. In addition, 2 HDMI and 2SDI embedded audios can be set to AFV mode
•Powerful Media Management The video switcher has a powerful built-in media management function with 39 preset patterns. User also can import image from USB flash disk, or capture and store the screenshot image of SDI 1, SDI 2, HDMI3, HDMI 4, Clean PGM or PGM.
•USK & DSK The switcher supports chroma key and luma key, which is convenient for users to key off blue/green and black background colors for virtual studio or live event applications. Besides, User can gain an exact color level by using the color picking, clip and gain key adjustment

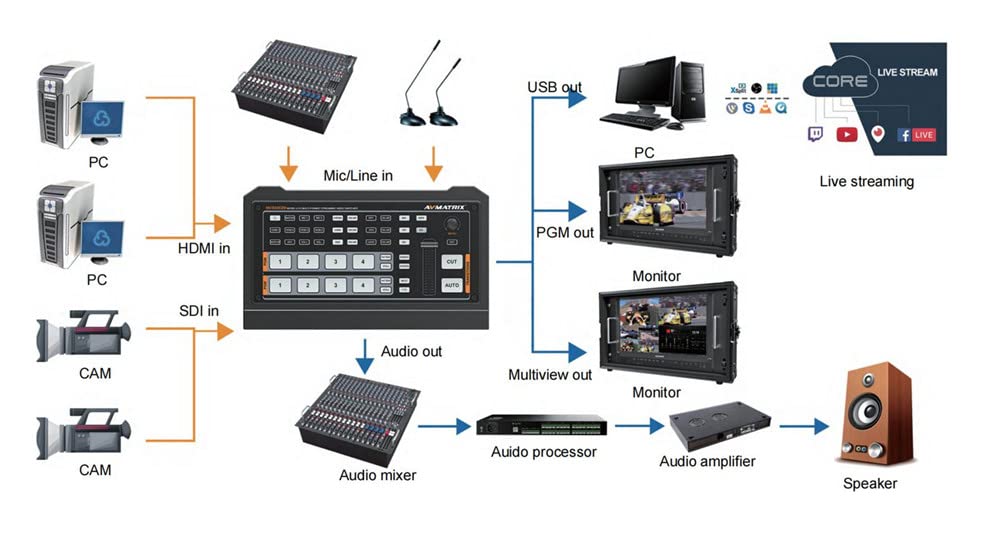

•USB Capture for Streaming Connect the switcher to a computer with Windows 7/8/10, Mac OS via USB output, and use softwarare like OBS, PotPlayer, VMix, etc. to realize live streaming in Youtube, Facebook, Twitter, etc. platforms.The video source of USB out not only can be
•Scaled Output & Multiview The switcher supports multi-format inputs including 1080p, 1080i, 720p, 576i and 480p HDMI/ SDI signals. Each output supports up/down scaling and can be configured as HDMI/SDI source, PVW, PGM, clean PGM, or Multiview. Besides, all cameras as well as setting status/menu can be monitored via multiview output.
