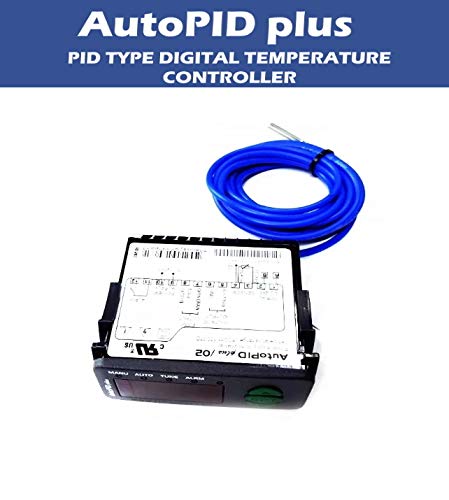

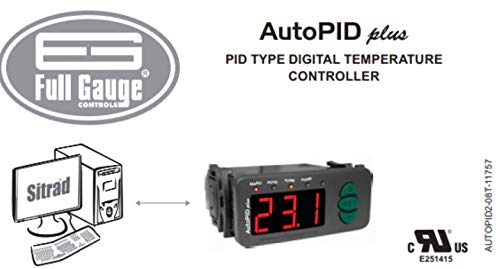

AutoPID Plus - PID Type Digital Temperature Controller - FULL GAUGE

1. DESCRIPTION The AutoPID plusis a digital controller for heating and cooling processes. It uses a PID (proportional, integral, and derivative) type controller, which enables to control the temperature with minimal fluctuation. Product complies with ULInc. (United States and Canada). 2. APPLICATION Freezing and heating chambers Refrigeration plants Set of compressors etc. 3. TECHNICAL SPECIFICATIONS - Power Supply: 90 to 264Vac (50/60 Hz) - Controlled Temperature: -50 to 100°C (with resolution of 0.1°C) - Indication Accuracy: 0.1°C between -10 and 100°C and 1°C for the rest of the scale - Controlling Accuracy: 0.1°C for the whole scale - Proportional Outputs: Voltage output: 0~10Vdc 5mA PWM: Adjustable period 5mA - Alarm Output: 5(3)A250Vac 1/8HP - Dimensions: 71 x 28 x 71mm - Operation temperature: 0 to 50°C - Operation humidity: 10 to 90% RH (without condensation)
