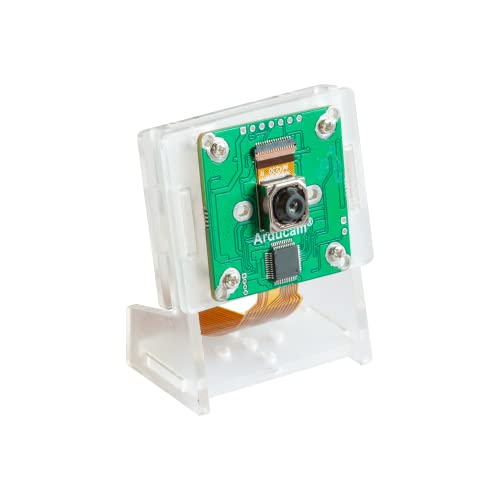

Arducam for Raspberry Pi Camera, 21MP IMX230 Programable Motorized Focus Pivariety, Compatible with Raspberry Pi ISP and Gstreamer Plugin
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Major Breakthrough: Arducam Pivariety series not only breaks the limitation of the Pi camera’s resolution and sensors, but also supports hardware ISP functions like AEC/AGC, etc. In other words, with Pivariety, you can get higher resolutions with the same decent image quality as the Official cameras. NOTE: Our newest version C doesn't come with an adapter board, you can directly connect to pi to use.

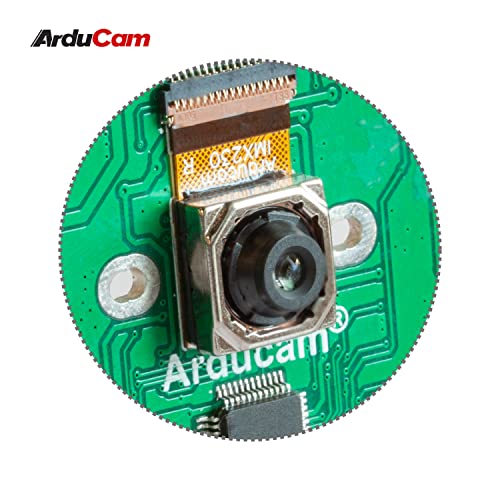

•Still Image: This camera module adopts the IMX230 sensor for 21MP higher resolution than 12.3MP IMX477 RPi High Quality Camera; ISP output image format of JPG, YUV420, RAW, DNG.
•Capture Video: Supports frame rates 5344x4012@9 fps, 3840x2160@10 fps, 2592x1944@15 fps, 2656x2004@30 fps, 1920x1080@30 fps, 1280x960@120 fps, 1280x720@120 fps, 640x480@120 fps; ISP output video format of MJPEG, H.264.
•Lens Spec: Focus type: Motorized focus; Focal length: 4.77mm, can be adjusted via programmable focus control; F.NO: 1.75±5%; FOV: horizontal 64deg.

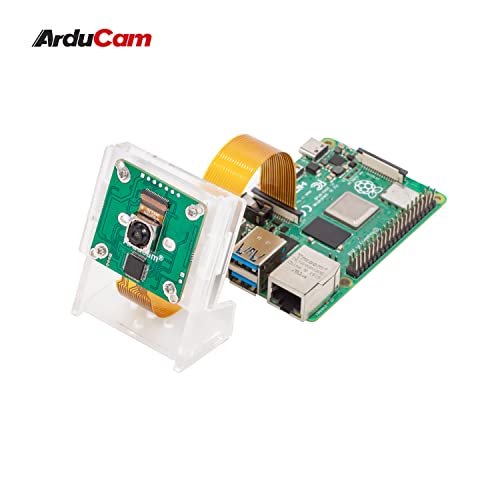

•Compatibility: Compatible with Raspberry Pi 4, Pi 3/3B+/3A+, and other A & B models (Doesn't support Pi 2B and Pi Zero). It is also compatible with Jetson Developer Kit, and it does not guarantee to support other third-party boards. Compatible w/ all libcamera-based apps maintained by the RPi foundation, like Gstreamer, OpenCV etc. NOTE: Pivariety can only work with libcamera instead of raspistill application.
