NewXIYHONG

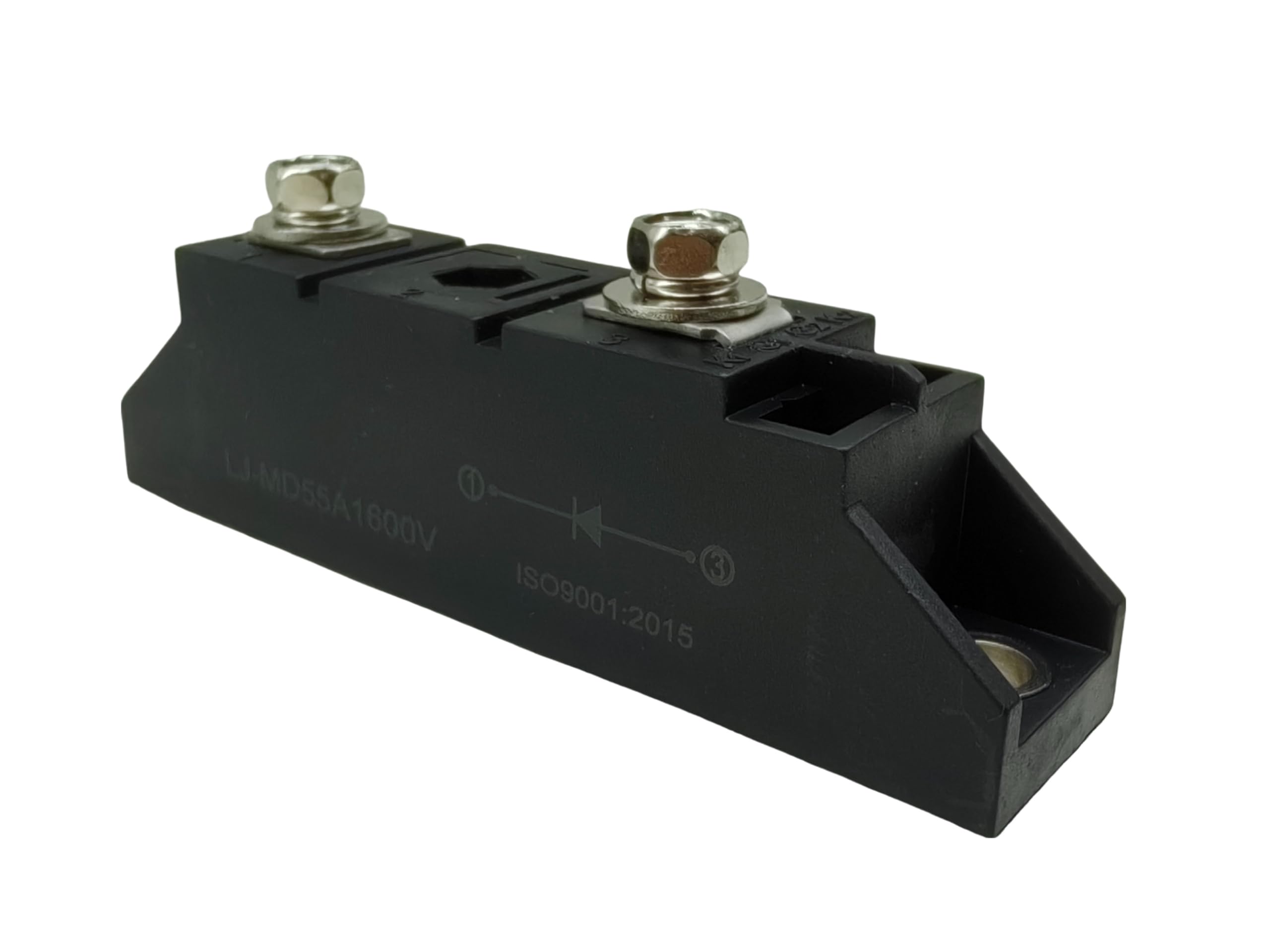

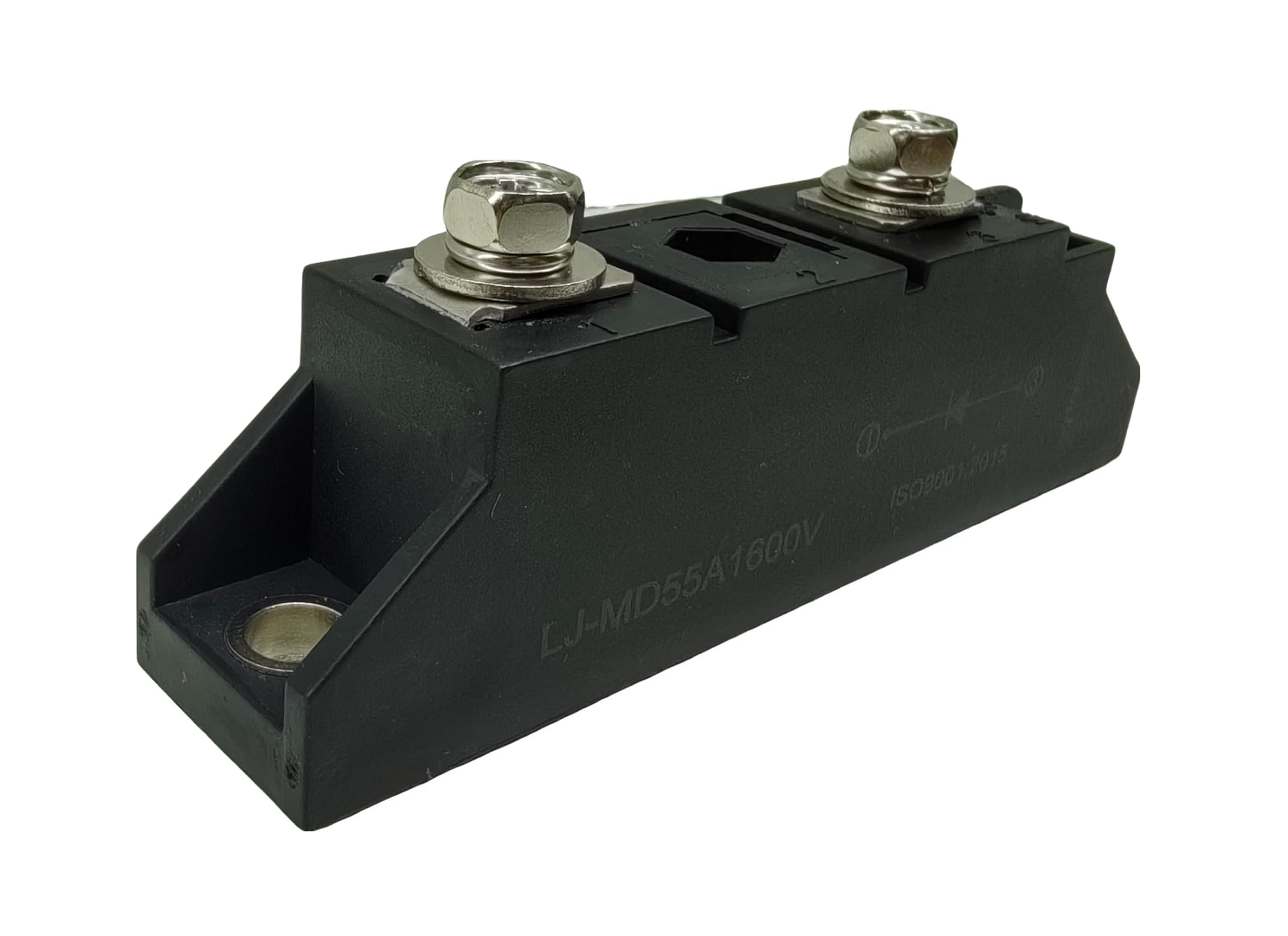

Anti-Reverse Diode Module MD55A1600V for High-Power Solar Photovoltaic Anti-Backflow，Forward Average Current 55A，Reverse Repetitive Peak Voltage 1600V
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•High-power diode, 55A, 1600V
•Electrical insulation between chip and baseplate, 3500V AC voltage
•Typical applications: photovoltaic combiner box, DC cabinet; DC charging pile; lithium battery anti-reverse; battery anti-reverse; DC motor excitation power supply; DC power supply for instrument equipment; battery charging DC power supply.
•CE certification, TUV certification
•Heatsink must be installed before using the product
