ALSOZONE+3eAudio PAM256 Multi-Channel Power Amplifier- 6 Channel amp,250W Per Channel,TPA3255 PBTL,GaN & PFFB (THD 0.0003%@8Ω),Auto Mode & Protection for Home Theater (PAM256)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•The PAM256 product line is dedicated multi-channel high-quality products that deliver true audiophile sound quality don’t need to be expensive to buy or complicated to configure and enjoy.leverage the successful of 3eAudio PFFB technology,the PAM256 amplifiers were designed with best PFFB(THD 0.0003%@8Ω) architecture to achieve superb sound in all types of audio systems,giving you great sound quality, excellent technical performance, and outstanding value

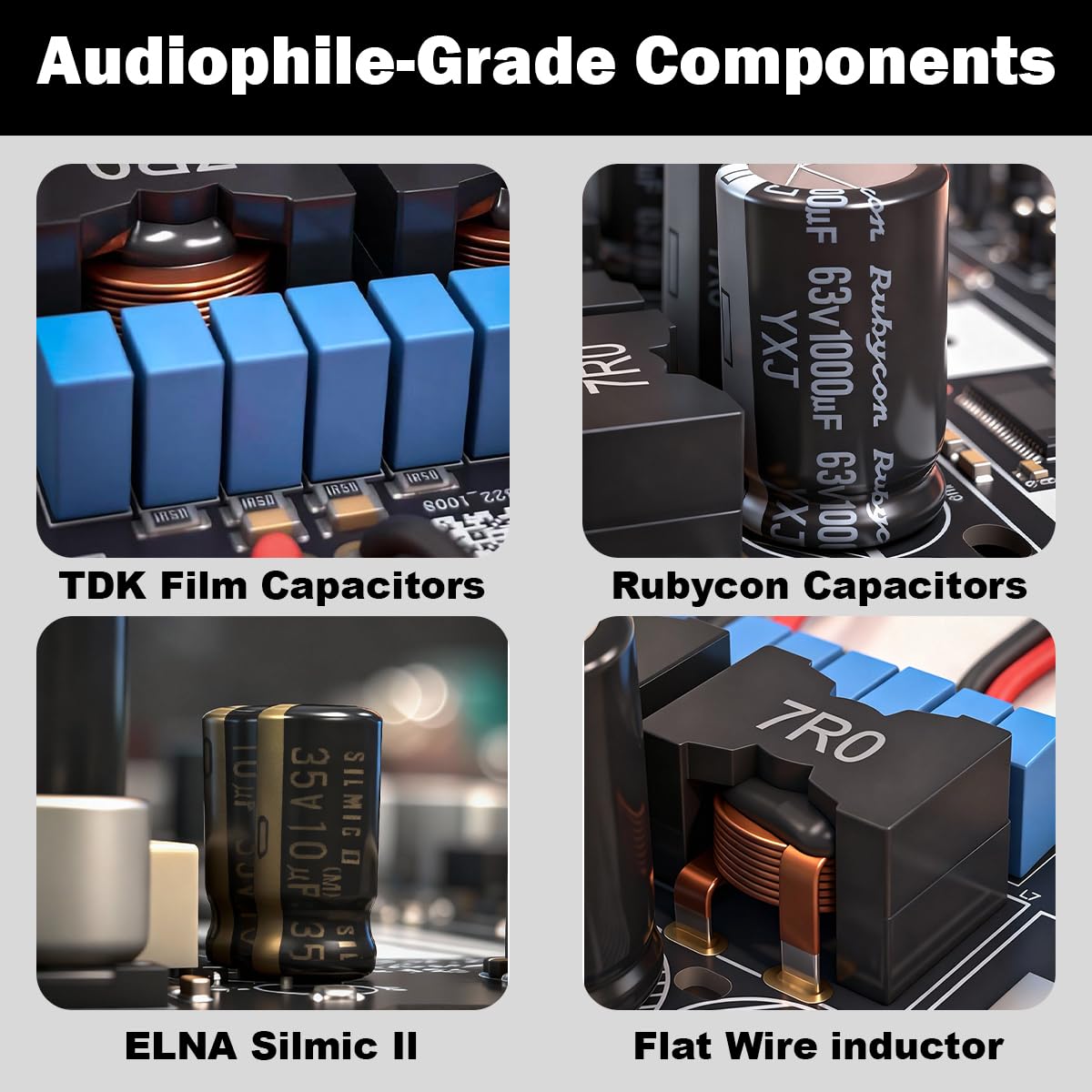

•"The PAM256 Integrated with high power desity GaN power supply, delivers 250W per channel in a compact form factor with Ultra-High efficiency, and offers cool efficient operation. It also uses high quality audio grade capacitors,flat wire inductors and also implemented high quality PCB design to ensure its highest performance. it also support differential inputs, universal voltage input for worldwide user, and microprocessor-controlled status indicators and protection scheme like over voltage, over current, over temperature protects the amp and your other equipment from all common fault conditions
•"The PAM256 also offers a choice of 2 step gain to fulfill variant of input devices including professional and consumer, it also supports both single-end and differential input, via a back panel toggle switch, user can set each channel the same or different. Front panel include LEDs for indicating each channel when it is active, an extra Clipping LED also included to show clearly when driver with heavy signal
•"The PAM256 offers 3 methods for user control - power key, trigger input and auto mode, all of them are selectable based on user preferences. Remote trigger input and through allow the PAM256 power amps to be turned on by triggerenabled devices, and to activate other trigger-enabled devices. a daisy chain configuration system also can be done by using multi-units linked as trigger input can be pass through into next unit. The auto mode enables you can configure the PAM256 amps to automatically turn on when an audio input is detected. and turn off automative after 20 minutes if no audio is active to reduce power lose for green energy saving and also thermal dissipation
•"Furthermore, the PAM256 series implemented with configurable modular architecture design giving user possibility repair or upgrade individual amplifier module without replacing entire units, reducing costs by 30-40% each upgrade cycle.for example, user can upgrade from 6 channel to 8 channel by just adding 2 extra amplifier modules. The PAM256 each channel design implemented one TPA3255 chipset configurated as PBTL model, reduce the output impedance and increase the efficiency, achieving maximum audio performance, can support variable speaker impedance down to 2ohm (equal to 34A driving current capability)

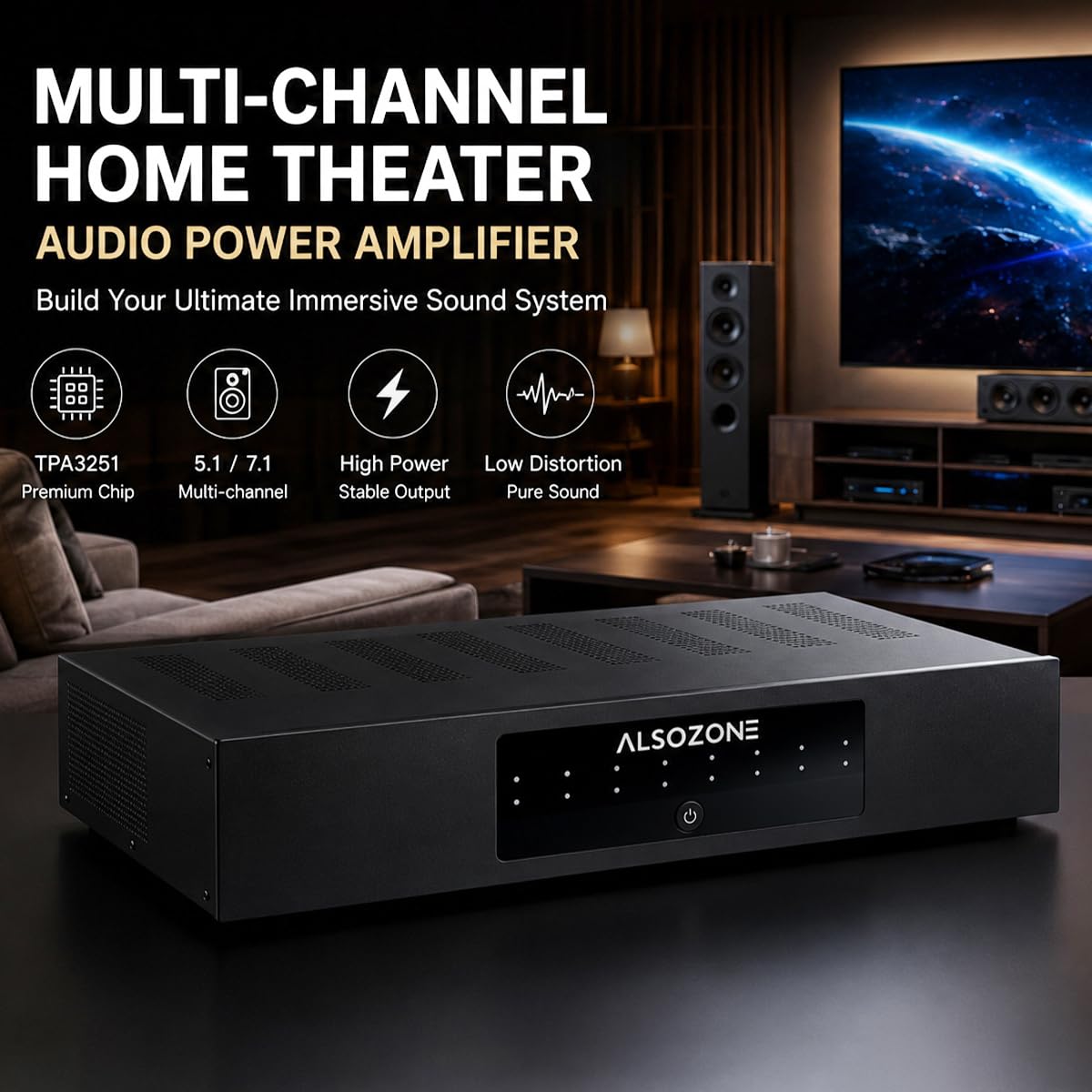

•Whether it's setting up a 5.1 or 7.1 home theater or an immersive sound system, deploying audio in professional conference rooms, building systems in commercial audiovisual venues such as KTVs, themed cinemas, and multimedia exhibition halls, or creating setups for Hi-Fi music rooms, educational training venues, and in-car audio modifications, the PAM256 series multi-channel power amplifiers can perfectly adapt. With innovative technology, flexible configuration, intelligent control, reliable quality, and exceptional cost-effectiveness, they have become the preferred solution for building multi-channel audio systems, helping every user create a personalized high-quality audio experience
