•Professional network accelerated development platform High speed fiber optic communication Data acquisition Video processing FMC interface

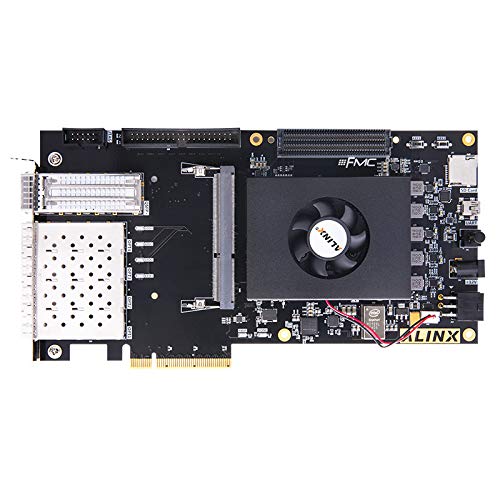

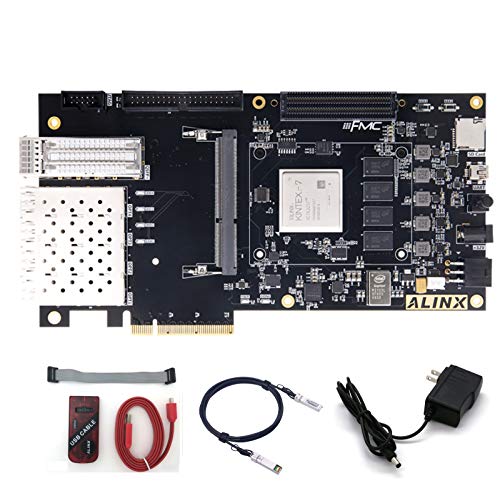

•Features Xilinx Kintex-7 FPGA XC7K325T-2FGG900, 2GByte DDR3 DRAM (4*512Mbyte=2GByte) up to 800MHz / 1600Mbps, 64bit bus. 240-pin SODIMM Memory Slot (Max. support 8GB memories) up to 400MHz / 800Mbps, 64bit bus. 128Mbit QSPI Flash. SD Card Slot

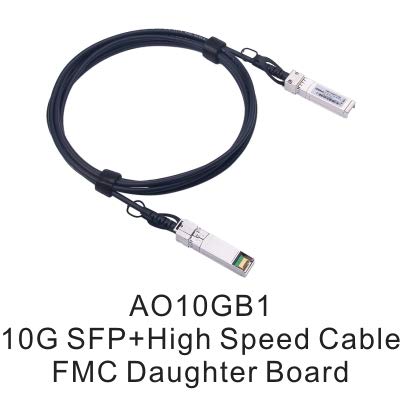

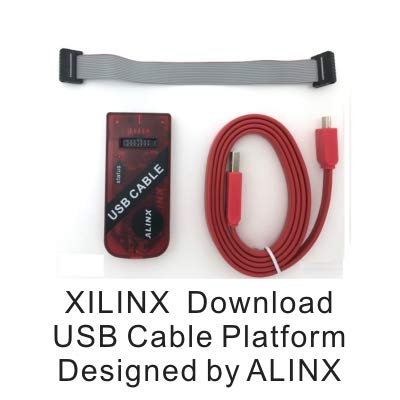

•Tri-Speed Ethernet, SFP/SFP+ Module Connectors, PCI Express 2-lane edge connector, USB-to-UART, HDMI video output, CMOS cameral module interface, Temperature Sensor Input (accuracy is 0.5 degrees) Onboard JTAG 12V DC Adapter
•40-pin connectors and FMC interface, expansion opportunities with ALINX Module, such as AD/DA data acquisition module, camera and LCD module
•Designed and manufactured by ALINX, that is XILINX Alliance Member in china. Provide schematic, user manual in PDF, Verilog HDL demos and experiments guideline
