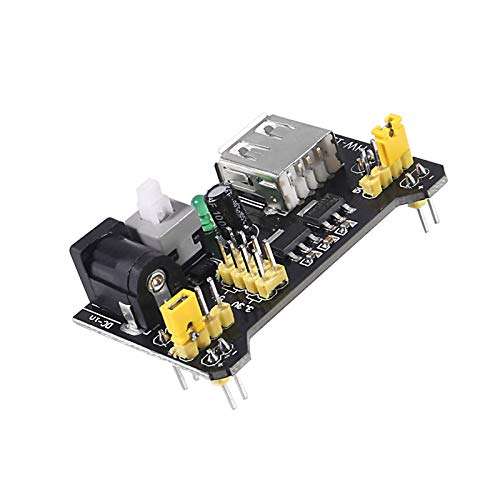

new | ALAMSCN 3.3V 5V MB102 Solderless Breadboard Power Supply Module with 9V Battery Clip Power Cable 2.1x 5.5mm Male DC Jack Plug for Arduino (Pack of 3)
Brand : ALAMSCN
new | ALAMSCN 3.3V 5V MB102 Solderless Breadboard Power Supply Module with 9V Battery Clip Power Cable 2.1x 5.5mm Male DC Jack Plug for Arduino (Pack of 3)
Brand : ALAMSCN
₹ 2,902.00 M.R.P :₹ 4,836.00
40% OFF
₹ 2,902.00
M.R.P :₹ 4,836.00
40% OFF
✔ In Stock
*Prices subject to change due to market. The price shown in the checkout is the guaranteed price. ₹ 2,902.00 M.R.P : ₹ 4,836.00
40% OFF
₹ 2,902.00
M.R.P : ₹ 4,836.00
40% OFF
✔ In Stock
Check Delivery Availability
Available Checking...
Quantity:
1
7 days Replacement
Secure Transaction
Free delivery
Manufacturers Warranty
Top Brand
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Secure Payments
Safe and Trusted Checkout
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Condition
New
Asin
B08JYPMCZY
Category
Electronics
Subcategory
Single Board Computers
Leafcategory
PC Accessory
MPN
AL12413
Color
Black
CPU Processor
unknown
Processor Count
1
Origin
USA
Brandname
ALAMSCN
Height
0.39
Length
0.39
Width
0.39
Weight
1
Warranty Description
3 months
Product Details
There is a green LED to indicate the presence of power, and an ON / OFF latching switch to control the power to the board.
The input voltage through the barrel socket must be between 6.5 V and 12 V. Hence, if you wish to use it to its maximum capability you will need to remain in that range. This is a non-adjustable fixed power supply model, which is good enough for most applications.
Maximum output current to be 700 mA. However, it is probably better to use much lower voltages and current to be on the safe side in case you make a mistake on your breadboard circuit.
With 9V battery snap power cable T-type 5.5x2.1mm connector.

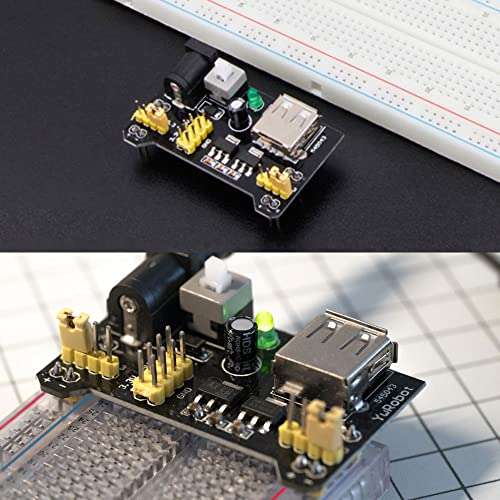

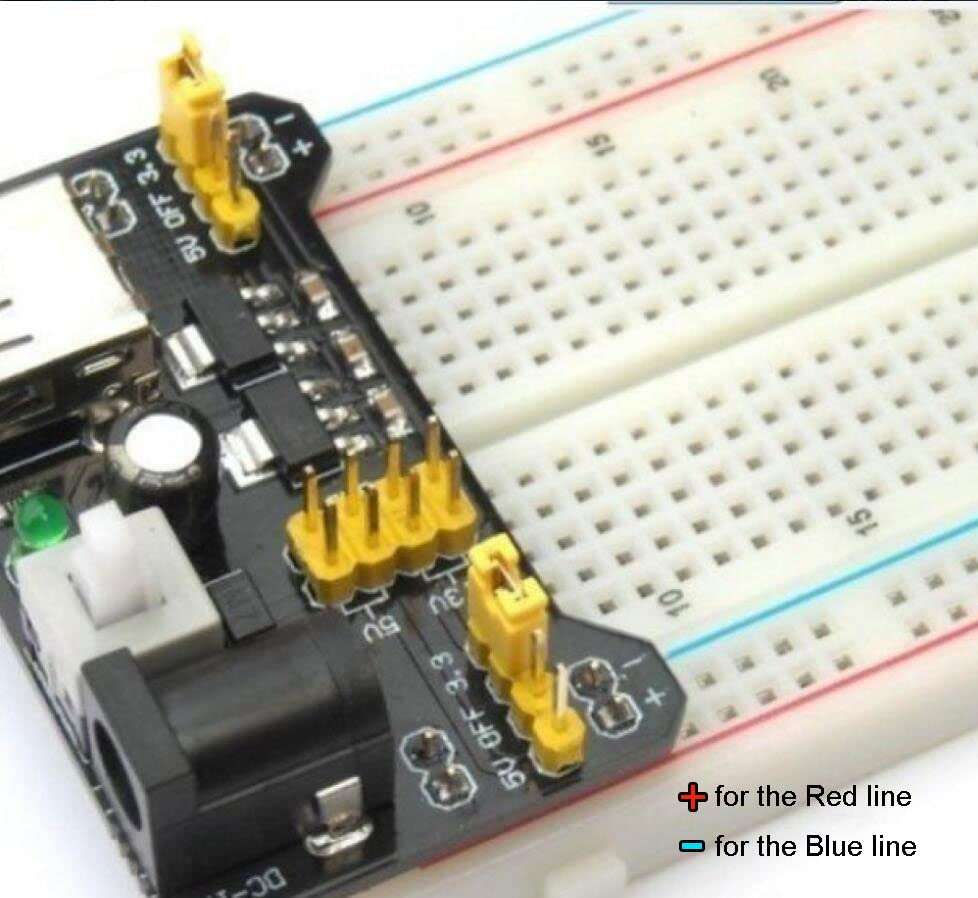

How to use: This is a plug-in power supply and the headers below the board simply plug-in to the breadboard. Once plugged in, the voltage rails to both sides on the breadboard then provide power. You then use the yellow jumpers to select the voltage levels required. This is a dual output 3.3 V, 5 V regulated board and you can have either voltage on either rail on the breadboard, which is very useful.
Product Ranking
#339 in Single Board Computers (Computers & Accessories)
Product Description

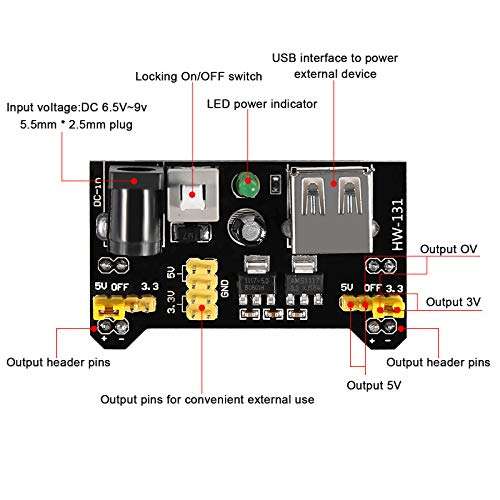

Feature:
Breadboard Power Supply Module
For MB102 bread board
compatible with 5V, 3.3V
Input Voltage :6.5-12V (DC) or USB power supply
Output voltage: 3.3V, 5V switchable
Maximum Output Current: <700ma
Two way independent control
Can be switched to 0V, 3.3V, 5V
On-board Two sets of 3.3V, 5V DC output pins, Facilitate the external leads
Size:approx.53x35x19mm

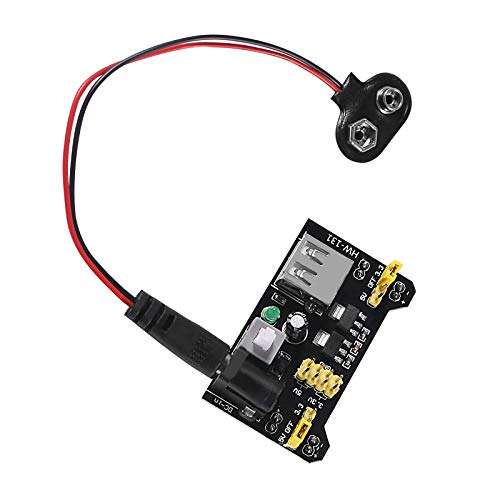

9V Battery Snap Power Cable T-type 5.5x2.1mm connector
Cable Length: About 10cm.
15cm stripped and tinned leads, 1 red and 1 black for easy identification and soldering;
Snap-on terminal connector for 9-volt battery or for DIY projects.

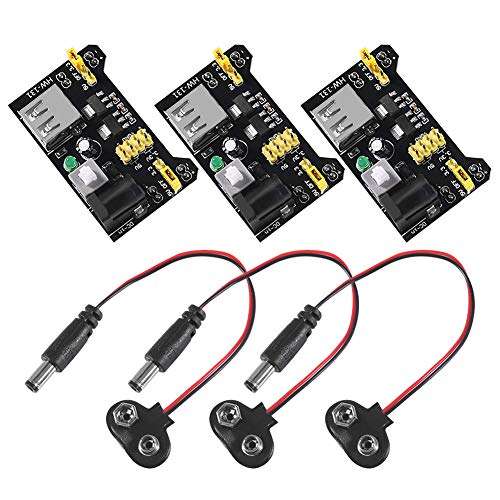

Package included:
3 x 5 V 3.3 V Breadboard Power Supply Module
3 x 9V Battery Snap Clip Power Cable
Product Description
Feature:
Breadboard Power Supply Module
For MB102 bread board
compatible with 5V, 3.3V
Input Voltage :6.5-12V (DC) or USB power supply
Output voltage: 3.3V, 5V switchable
Maximum Output Current: <700ma
Two way independent control
Can be switched to 0V, 3.3V, 5V
On-board Two sets of 3.3V, 5V DC output pins, Facilitate the external leads
Size:approx.53x35x19mm
9V Battery Snap Power Cable T-type 5.5x2.1mm connector
Cable Length: About 10cm.
15cm stripped and tinned leads, 1 red and 1 black for easy identification and soldering;
Snap-on terminal connector for 9-volt battery or for DIY projects.
Package included:
3 x 5 V 3.3 V Breadboard Power Supply Module
3 x 9V Battery Snap Clip Power Cable
