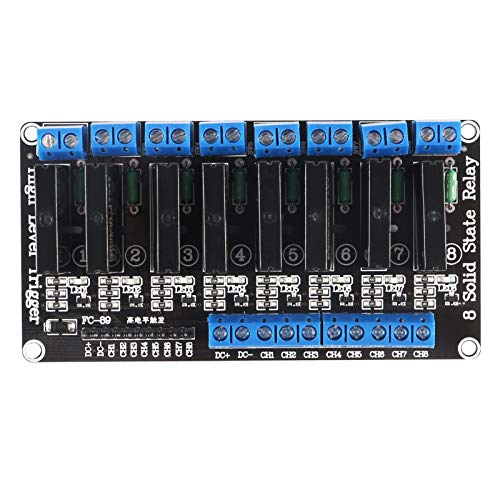

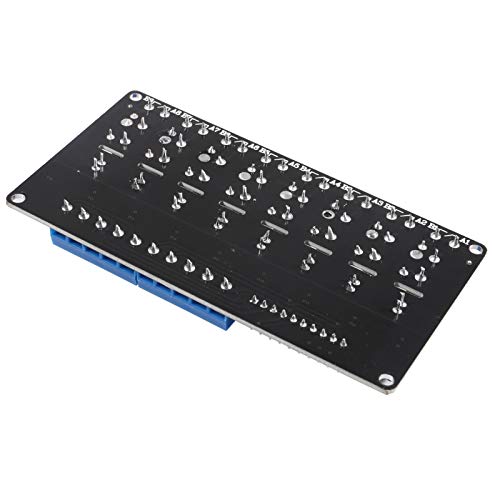

AITRIP 1PCS 8 Channel 5V Solid State Relay Module Board High Level Trigger Compatible with Arduino Uno Duemilanove MEGA2560 MEGA1280 ARM DSP PIC (1PCS)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Solid State Relay Module Board has been assembled, and electrical test passed
•Led indicator for each relay
•Size: 155 x 55 x 24 mm (approximately 6.1 x 2.17 x 0.95 inch)
•Has been assembled, and electrical test passed. Led indicator for each relay. Size: 155 x 55 x 24 mm (approximately 6.1 x 2.17 x 0.95 inch) Input control signal voltage: 0V - 0.5V Low stage (SSR is OFF), 0.5V - 2.5V (unknown state), 2.5V - 20V High state (SSR is ON); SSR Output (each channel);
•Load voltage range: 75 to 264VAC (50/60Hz); Load current: 0.1 to 2 AMP Standard interface that can be controlled directly by microcontroller (Compatible with Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
