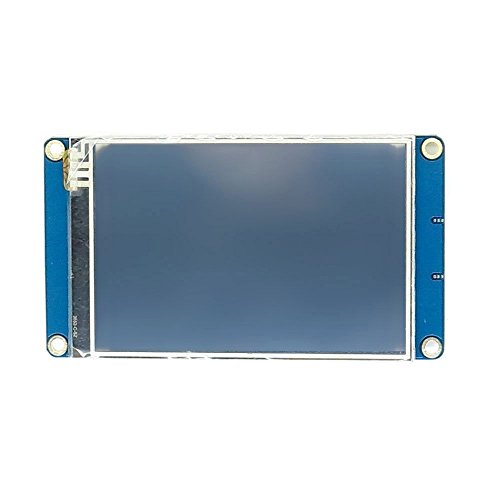

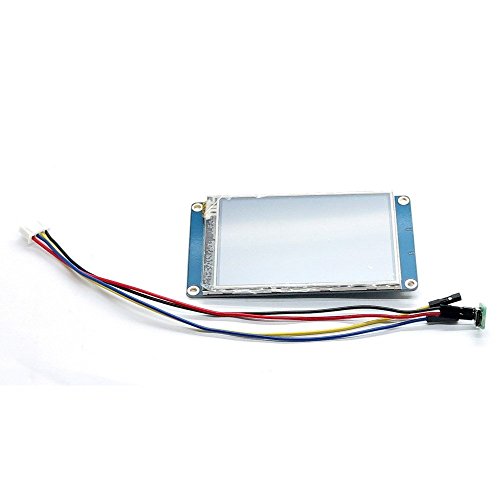

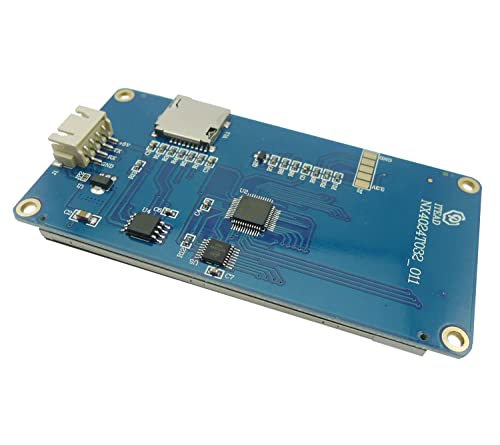

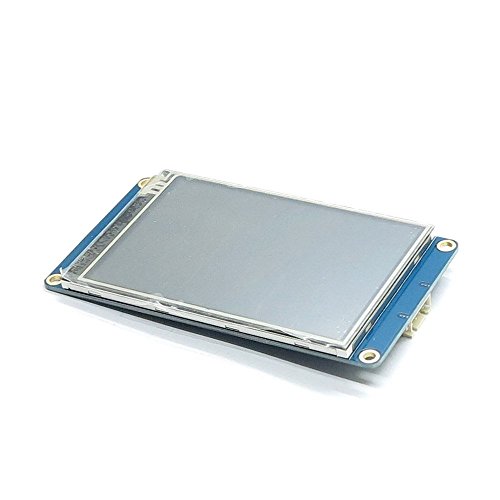

Aihasd English Version Nextion 3.2'' UART HMI Smart LCD Touch Display Module TFT Screen
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
•This solution includes hardware part - a series of TFT boards and software part - Nextion editor. Nextion TFT board uses only one serial port to do communicating. Let you get rid of the wiring trouble. We notice that most engineers spend much time in application development but get unpleasant results.
•This is a powerful 3.2'' HMI, which is member of Nextion family. Features include: a 3.2" TFT 400 x240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.TFT Screen with integrated 4-wire Resistive Touch Panel; Easy 4 pin interface to any TTL Serial Host
•It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.
•this is English version; Download Datasheet:"https://www.adrive.com/public/ndF2PQ/EU%20F000311%20NX4024T032.rar"; Nextion Editor:"https://www.adrive.com/public/JEVwGg/Nextion%20Editor.rar"
