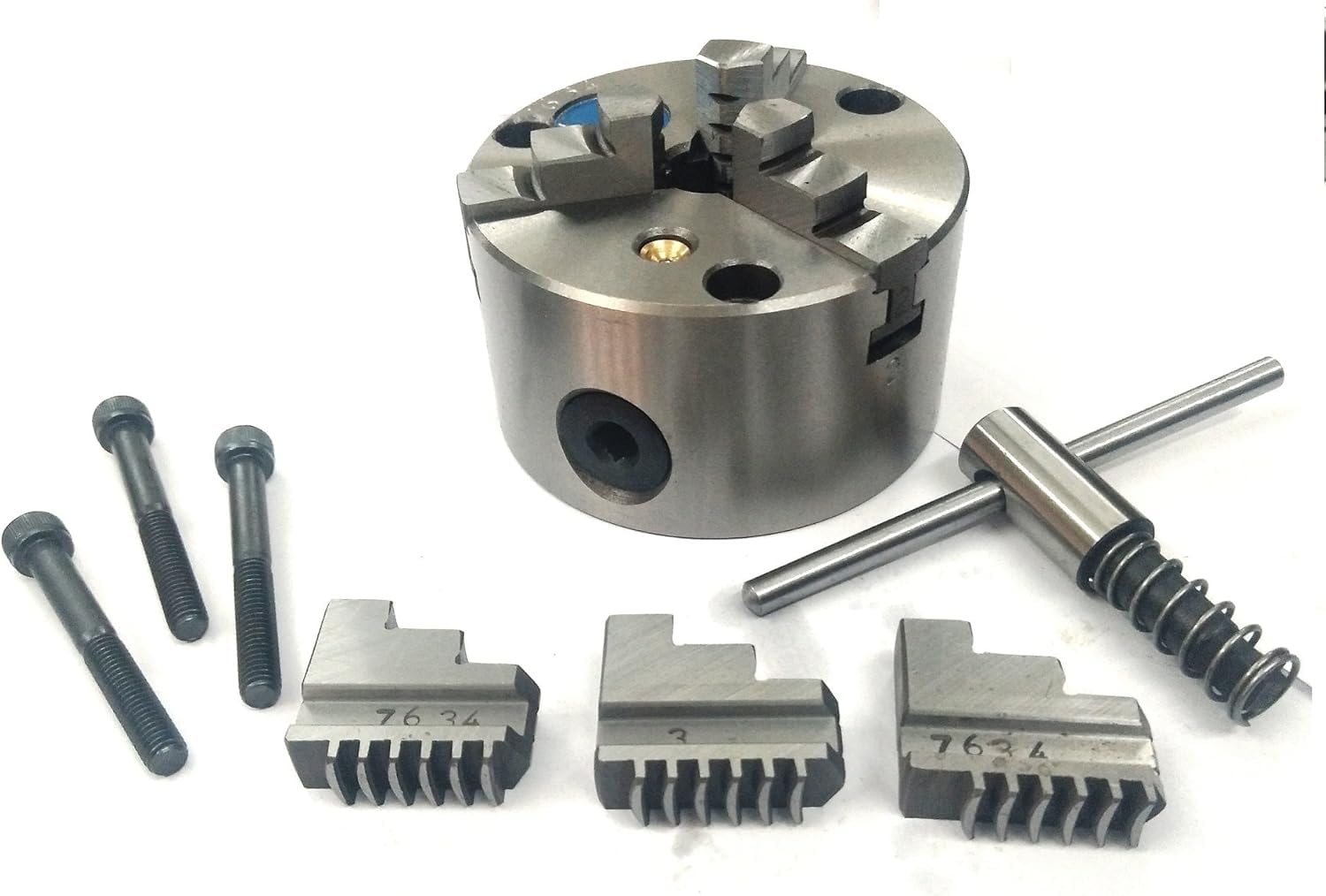

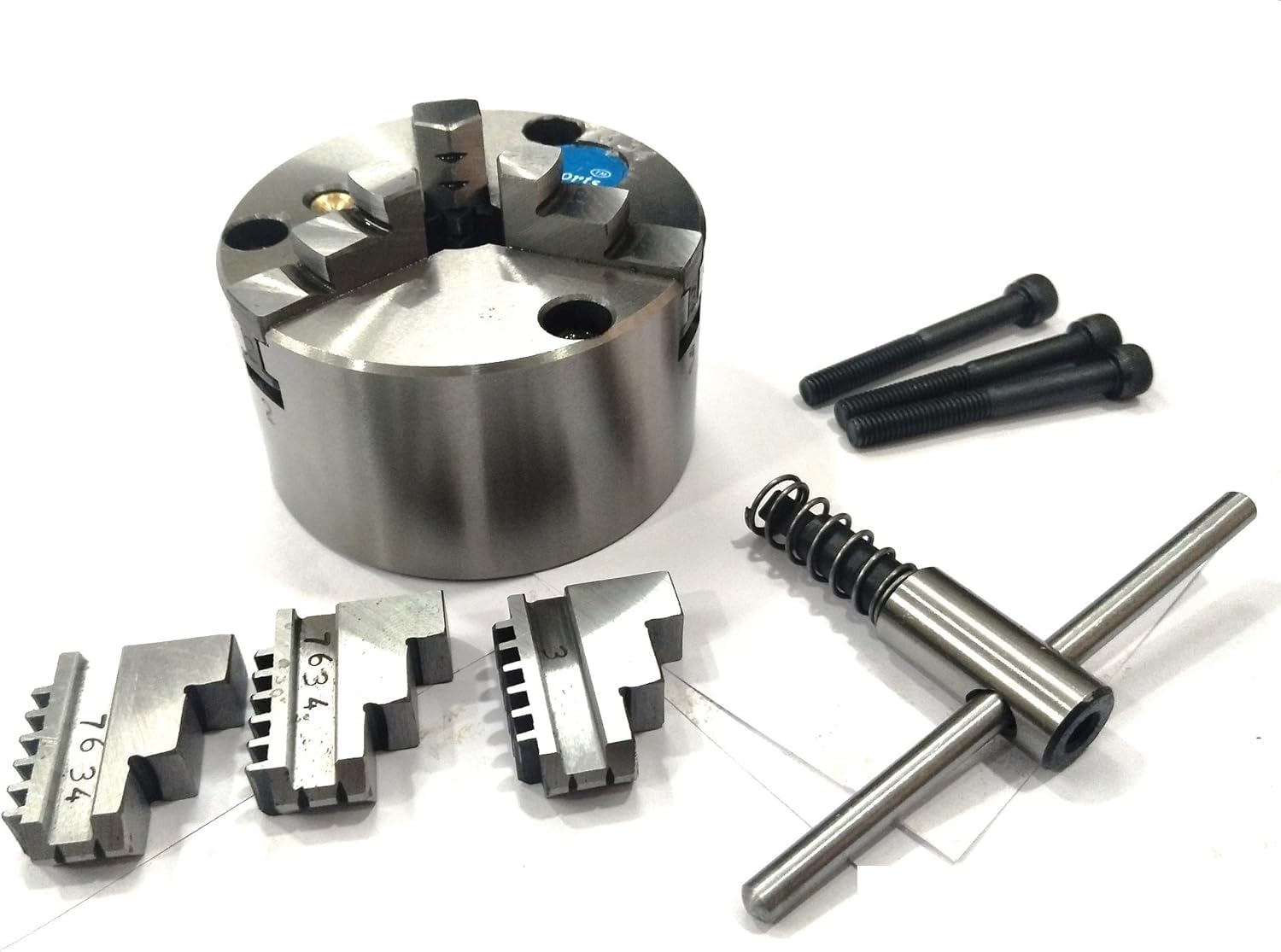

AD International 80 mm Chucks with Back Plate for 3" I 80 mm & 4" Inch I 100 mm Rotary Tables & Small Bench Top Lathe Machines ((80 mm 3 Jaws Self Centering chuck))
•Versatile Chuck Set: Upgrade your rotary table or mini lathe with this set of small chucks designed to fit 3" (80 mm) and 4" (100 mm) machines, enhancing their functionality and versatility.
•Precision Engineering: Crafted with precision to ensure optimal performance, these chucks provide secure grip and smooth rotation, essential for accurate machining and turning operations.
•Versatile Compatibility: Suitable for 3" (80 mm) and 4" (100 mm) rotary tables. Compatible with a wide range of mini lathes, making them a versatile addition to your workshop.
•Easy Installation: Designed for quick and straightforward installation, saving you valuable time and effort. Includes all necessary mounting hardware for hassle-free setup.
•Secure Grip: Features high clamping force to securely hold workpieces in place during machining. Reduces the risk of slippage and enhances safety.
•Technical Specifications: Chuck Sizes Available: 3" (80 mm) and 4" (100 mm). Material: Premium-Grade Steel. Back Plate Material: Tool Steel

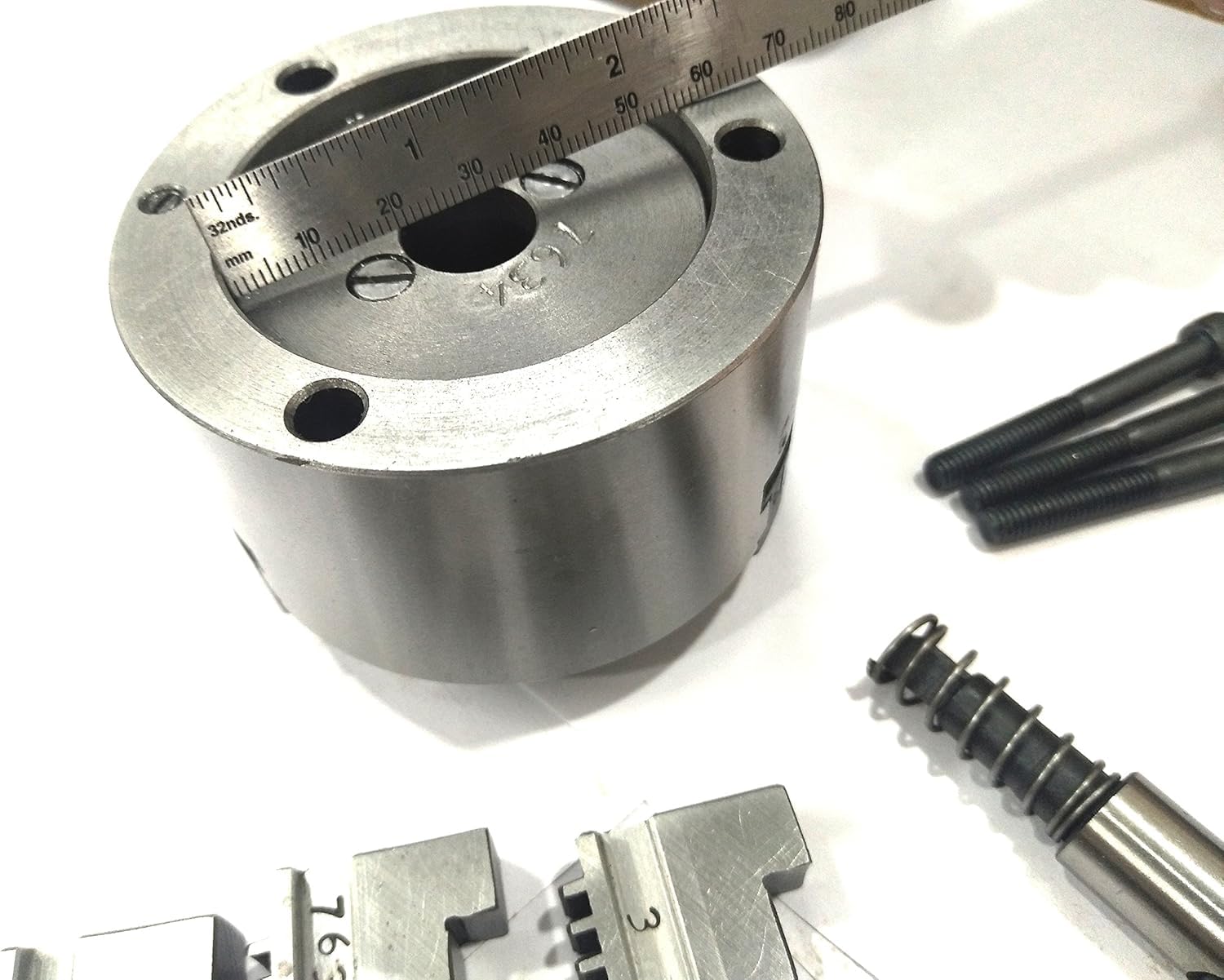

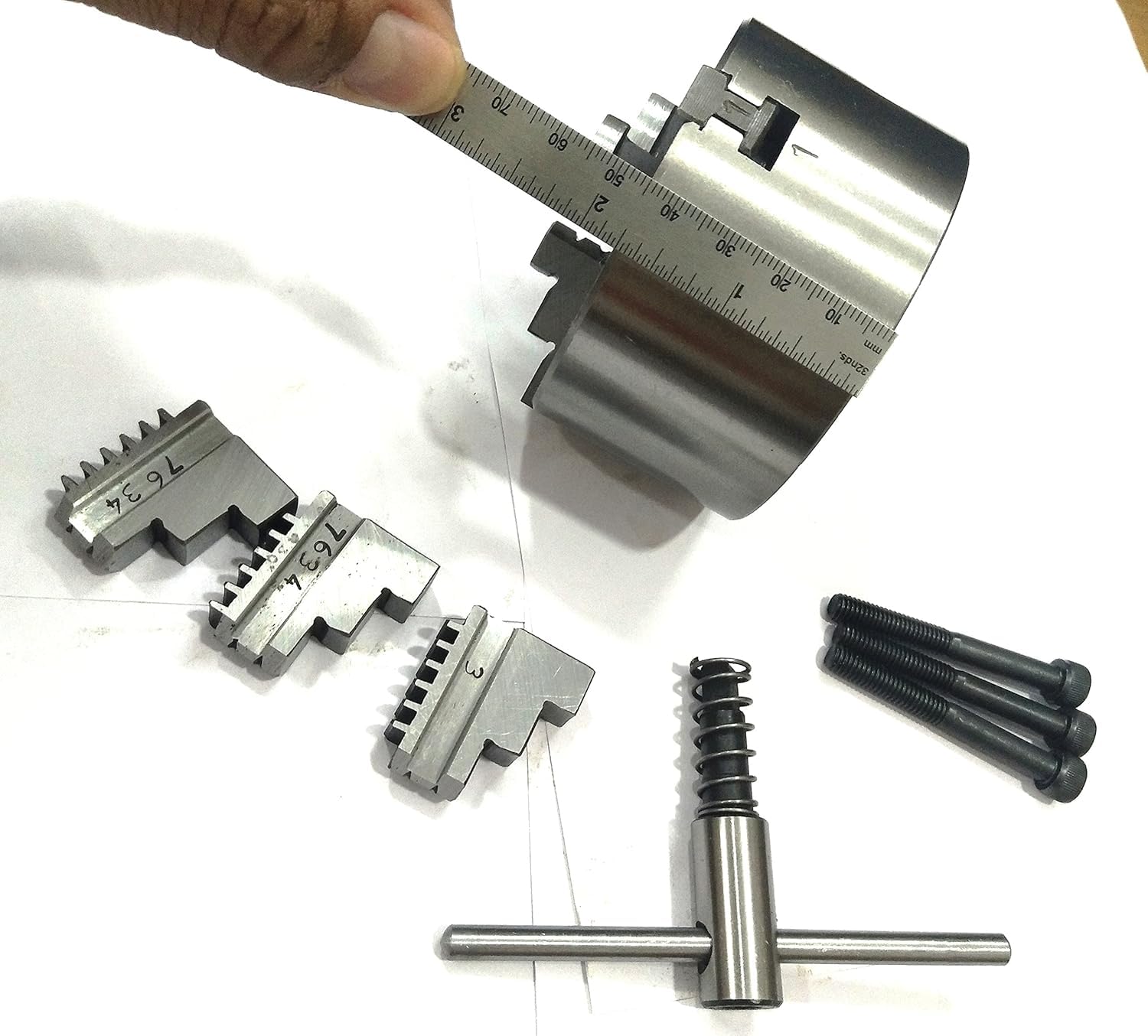

•80 mm Self Centering Chuck 3" /80 mm Rotary table. Recess is 55 mm Total Height excluding the jaws (Only Body) : 45 mm. The Back plate is drilled with M6 size tapped holes for the chuck's bolts to be screwed with the back plate and then provided with 2 counter drills to them clamp it with the Rotary table's T slots. The Chuck body is made of high grain casting and the jaws are made of hardened tool steel for a long life. The chuck recess is 55 mm same as that of the back plate. The back plate has a 13.9 mm small spigot that helps it in centrally locate it in the center of the Rotary Table.
•80 mm Independent Chuck The other side of the Back plate has a small spigot to fit /adjust into the center of the Rotary table for better accuracy and Fitting. Supplied with Fixing T nuts Bolts.
