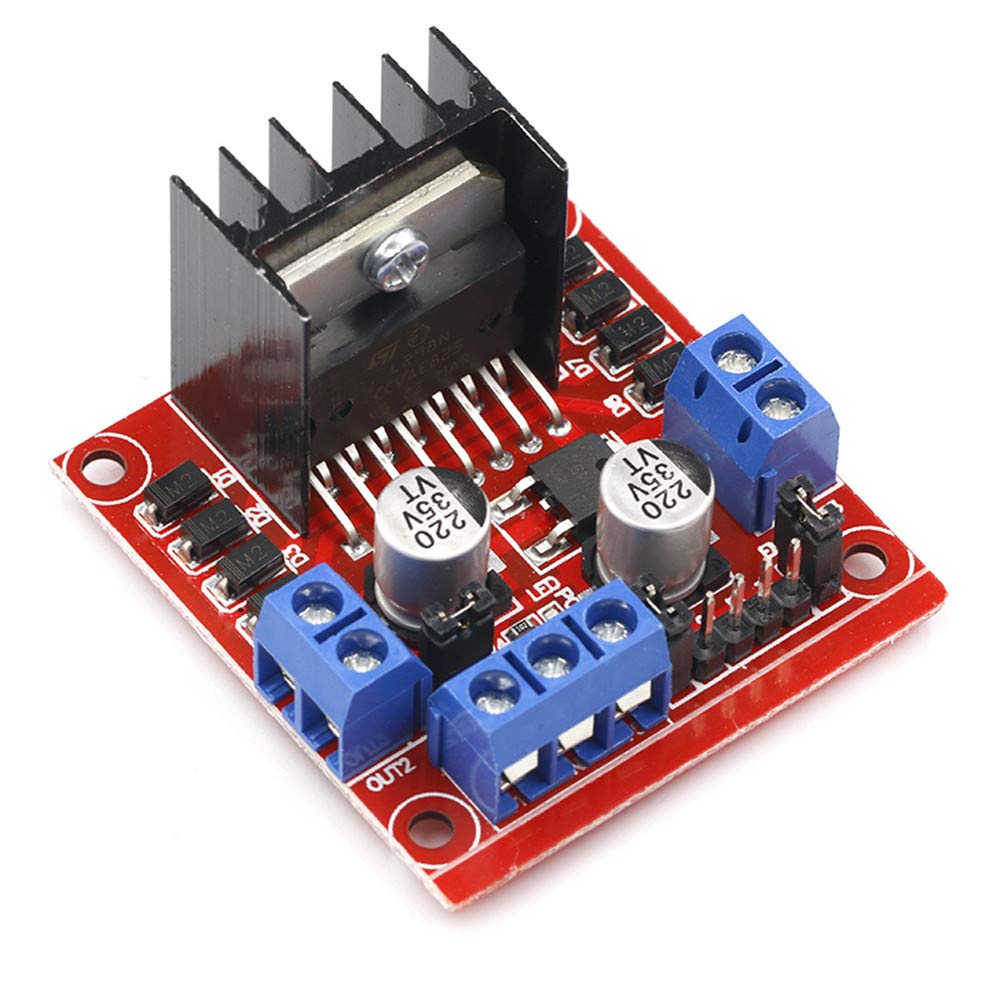

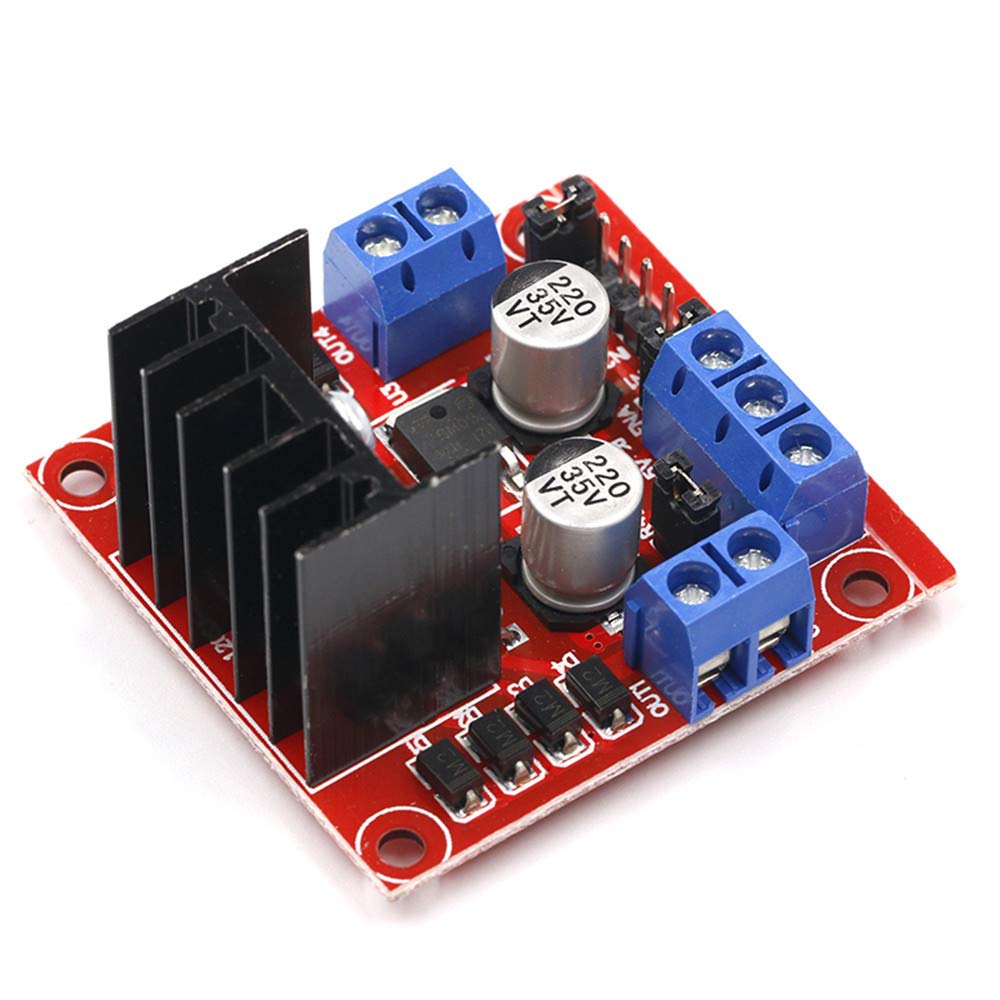

ACEIRMC 5pcs L298N Motor Driver Controller Board DC Dual H-Bridge Robot Stepper Motor Control and Drives Module for Arduino Smart Car Power UNO MEGA R3 Mega2560 (Controller Board)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•1.When you are driving voltage (above logo for the 12 v input, can actually accept input range is 7 to 12 v) for 7 v to 12 v, can make to onboard power supply 5 v logic, when using the onboard after 5 v power supply, interface of + 5 v The power supply does not input voltage, but can yield 5V voltage for external use.
•2.The chip manual proposes to support 35V, but according to the book When the maximum voltage is applied to the maximum voltage of 298 conservative applications to 24V, for example, the motor with a rated voltage of 18V shall be driven
•3.Great for for Arduino DIY Smart Car Robot Power UNO MEGA R3 Mega2560 Duemilanove, if driving voltage is more than 12V, use external standard 5volt TTL outputs to switch the H-bridge circuits
•4.No assembly required. This L298N board comes ready to go. Just wire up motors and power, easy to use
•5. Double H bridge design, can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors, high efficient
