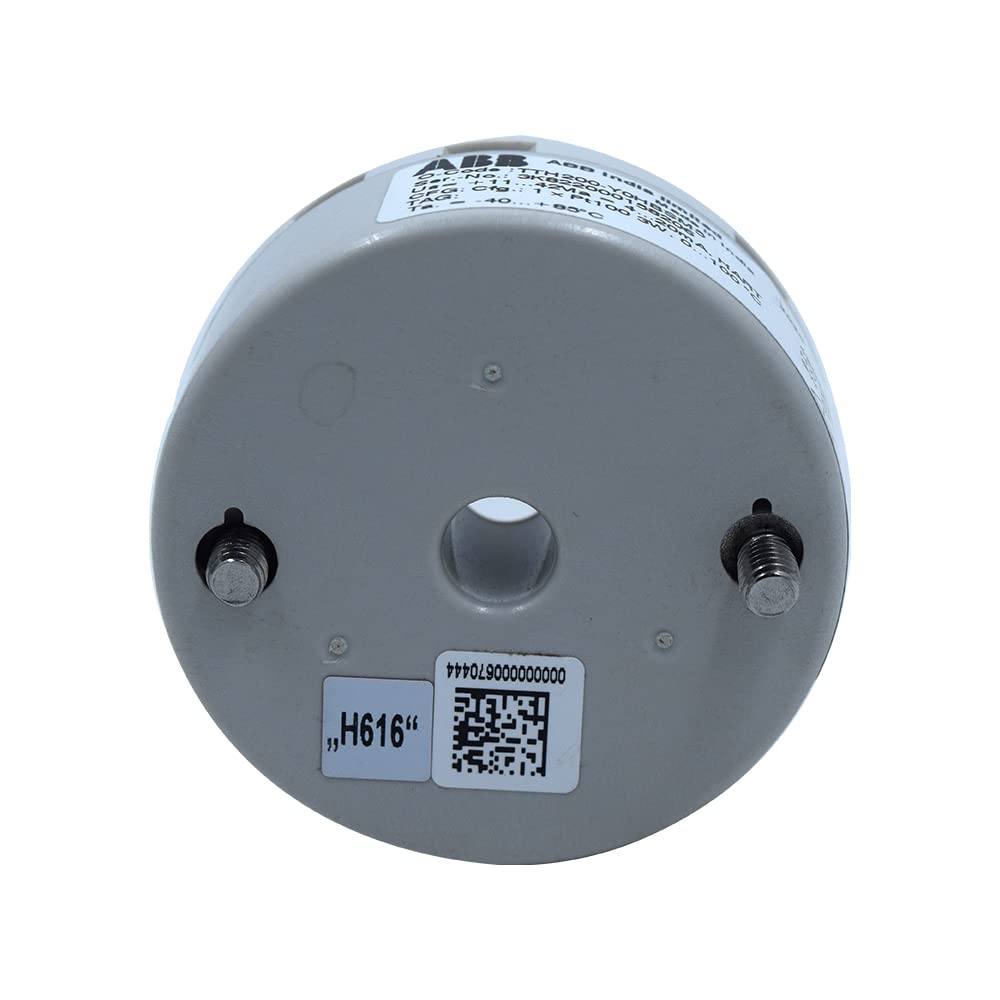

ABB TTH 200 Head Mounted High Accuracy HART Protocol Temperature Transmitter with Universal Input (Thermocouples J, K, T, E, N, R, S, B, C, D, U, L and Pt100, Pt1000, Ni, Cu and RTD)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Features: Input circuit and communication : Universal sensor input for resistance thermometers (RTD) and thermocouples; Communication via a 4 to 20 mA signal and the HART protocol
•Device versioning in accordance with NE 53; Continuous monitoring of supply voltage; Wire break / corrosion monitoring in accordance with NE 89
•Ambient temperature: Standard: −40°C to 85°C (−40°F to 185°F)
•Electrical isolation : 3.5 kV DC (approx. 2.5 kV AC), 60 s, input to output
•MTBF time: 190 years at 40 °C (104 °F) mean ambient temperature
•Input filter: 50 / 60 Hz
•Warm-up time: 5 minutes
•Rise time t90: 400 to 1000 ms
•Measured value update: 10/s, independent of sensor type and sensor circuit
•Storage temperature : −50°C to 85°C (−58°F to 185°F)
•Max. permissible humidity in accordance with IEC 60068-2-30: 100 % relative air humidity
•Switch-on delay : < 10 s (Ia ≤ 3.6 mA during switch-on cycle)
•Output filter: Digital filter 1st order: 0 to 100s

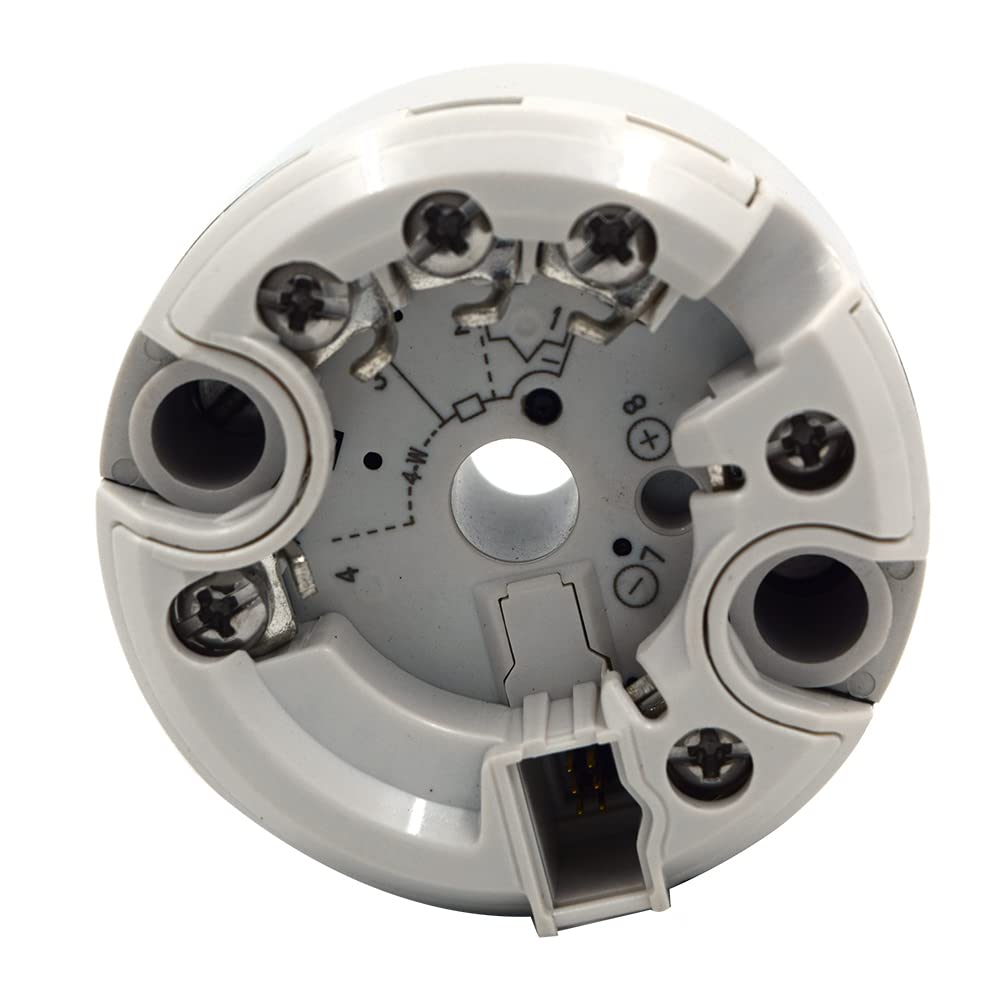

•Electrical connection: Terminals with captive stainless steel screws, including soldering tags; Lines up to a maximum of 1.5 mm2 (AWG 16); Connection for handheld terminal
•Climate class in accordance with DIN EN 60654-1: Cx −40 to 85 °C (−40 to 185 °F at 5 to 95 % relative air humidity
•Shock resistance in accordance with IEC 68-2-27): gn = 30, during operation and transport
•IP rating : Power supply circuit: IP 20; Measurement current circuit: IP 00 or IP-rating of installation housing
•Supply Scope: 1 unit of ABB-TTH200 and Instruction Manual
