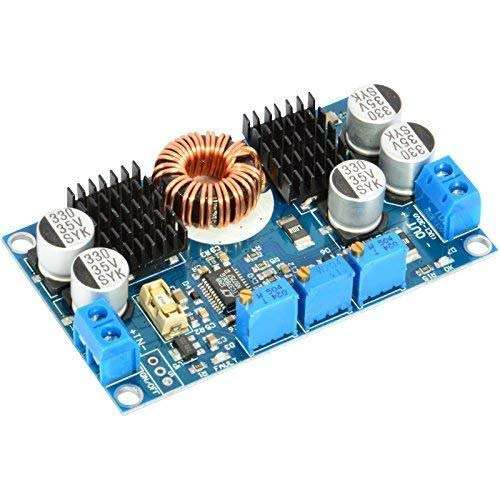

a2zteco LTC3780 DC 5-32V to 1V-30V 10A Automatic Step up Down Regulator Charging Module

Wide input voltage range: 5 to 28V Low impedance electrolytic capacitors and ceramic capacitors in the output filter capacitor high frequency, low output ripple, input 18V output 12V6A output ripple to less than 80mVp-p. Output voltage: 12V fixed output type, please specify when the output voltage (between 24V). The default shipping 12V Continuous output current: 6A (Input 18V Output 12V). Different input voltage, maximum continuous output current. The use of advanced synchronous rectification, the conversion efficiency up to 98% Operating frequency: 200KHz Even if the short-circuit is not afraid of output over current, short circuit protection, output of the circuit will automatically protection Chip with overheat protection, over-temperature automatically stop working Input undervoltage protection, stop working when the input voltage is lower than 4.5V No input reverse polarity protection, input and output reversed shall be burnt Soft-start function, ensure that the power-voltage overshoot Remote to end direct control of the output voltage, straightforward ground to close the output voltage, the module goes into sleep mode power consumption of less than 20uA. Then open the output (vacant). Full load temperature rise: 50 C Industrial-grade operating temperature range: -45 to +85 C Volume: 70X31X17mm (length X width X height) Connection: Terminal type
