NewStargazer Enterprises
8 Channel Half Bridge Load Cell Amplifier to Single Analog Output with Gold Plated Headers
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

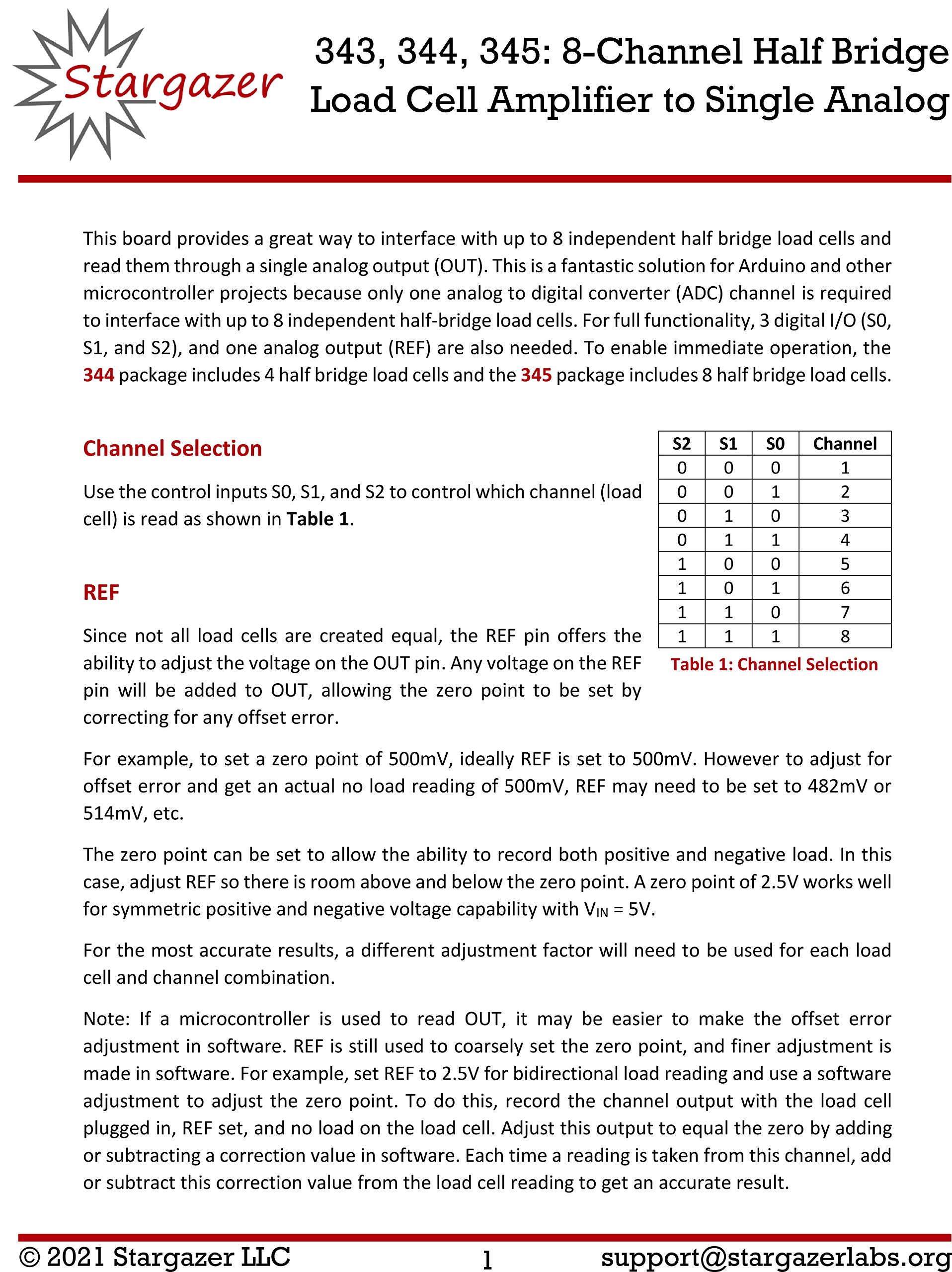

•you measure from using the digital inputs S0, S1, and S2.

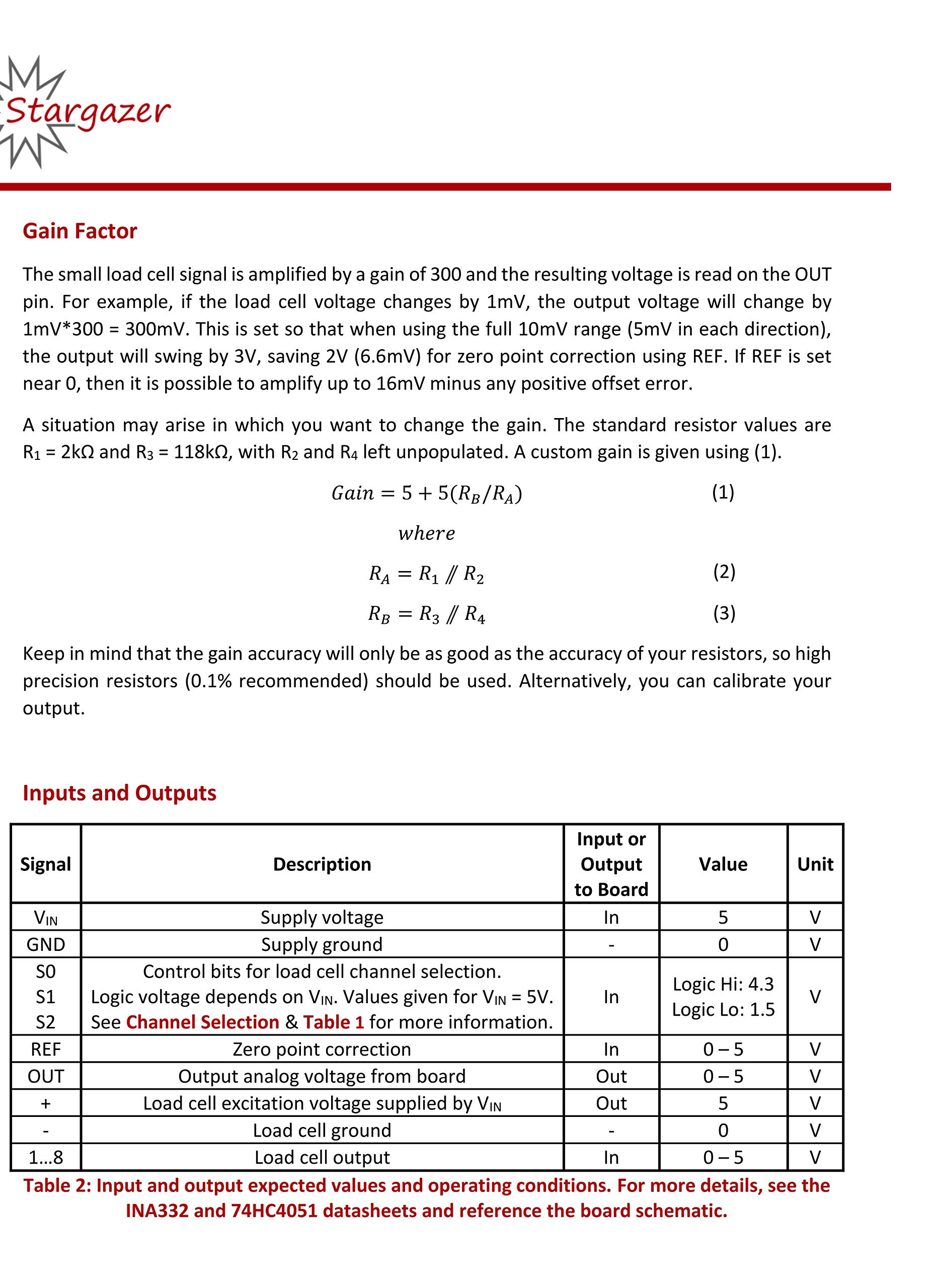

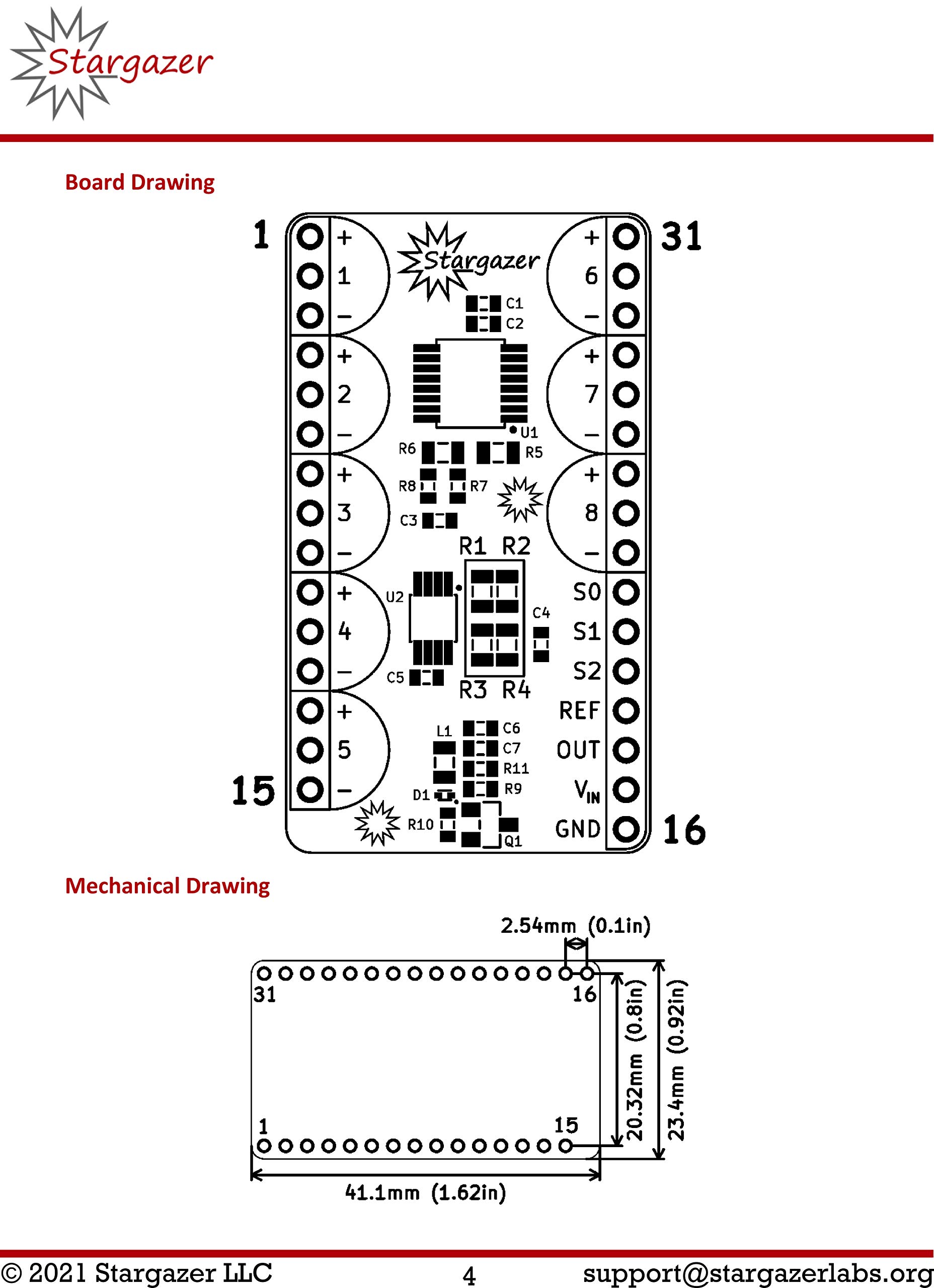

•Easily modify the 300x amplification factor by modifying the 0805 resistor divider on the board per the guide in the datasheet. The board is gold plated for easy soldering and modification.
•Board functions from a 5V or 3.3V supply (though the initial 300x amplification works best with a 5V supply).
•Gold plated male and female headers (1 x male 15 pin, 1 x male 16 pin, 1 x female 15 pin, 1 x 16 female pin) are included for customizability and instant use.
•No half bridge load cells are included in this 343 package, however 4 half bridge load cells are included in the 344 package and 8 half bridge load cells are included in the 345 package.
