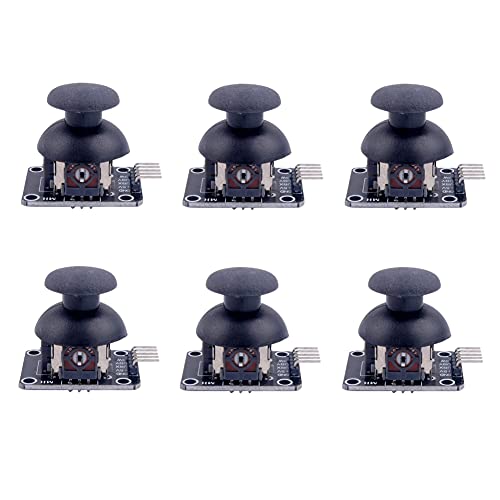

6Pcs PS2 Joystick Sensor Game Controller XY Dual-axis Joystick Breakout Module Compatible with Arduino
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•★Voltage Range: DC 3.3V-5V, electronic building blocks standard connector with 2.54mm pin.
•★Module uses 5V power supply, the original state of X, Y read voltage of 2.5V. When pressing at the arrow direction, voltage increases, maximum is 5V, at opposite direction of the arrow, the voltage value decreases, minimum is 0V.
•★DO port for digital output, AO port for analog output.

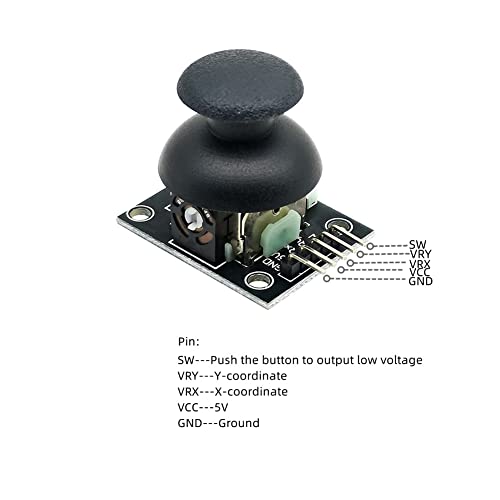

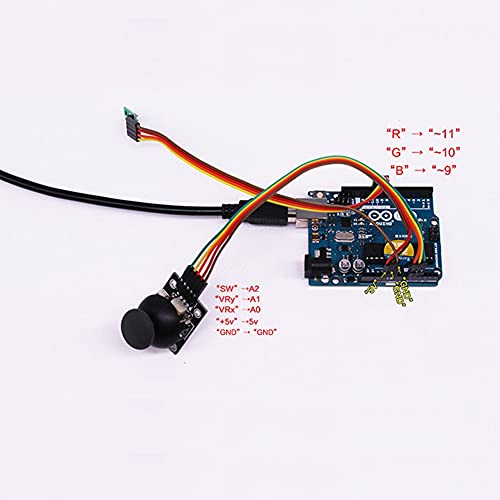

•★Connection for Arduino and PS2 Joystick module: SW-A2; VRy-A1; VRx-A0; +5V-5V; GND-GND.
•★Game PS2 joystick module compatible with for Arduino, raspberry pi, micro:bit, 51, STM32.
