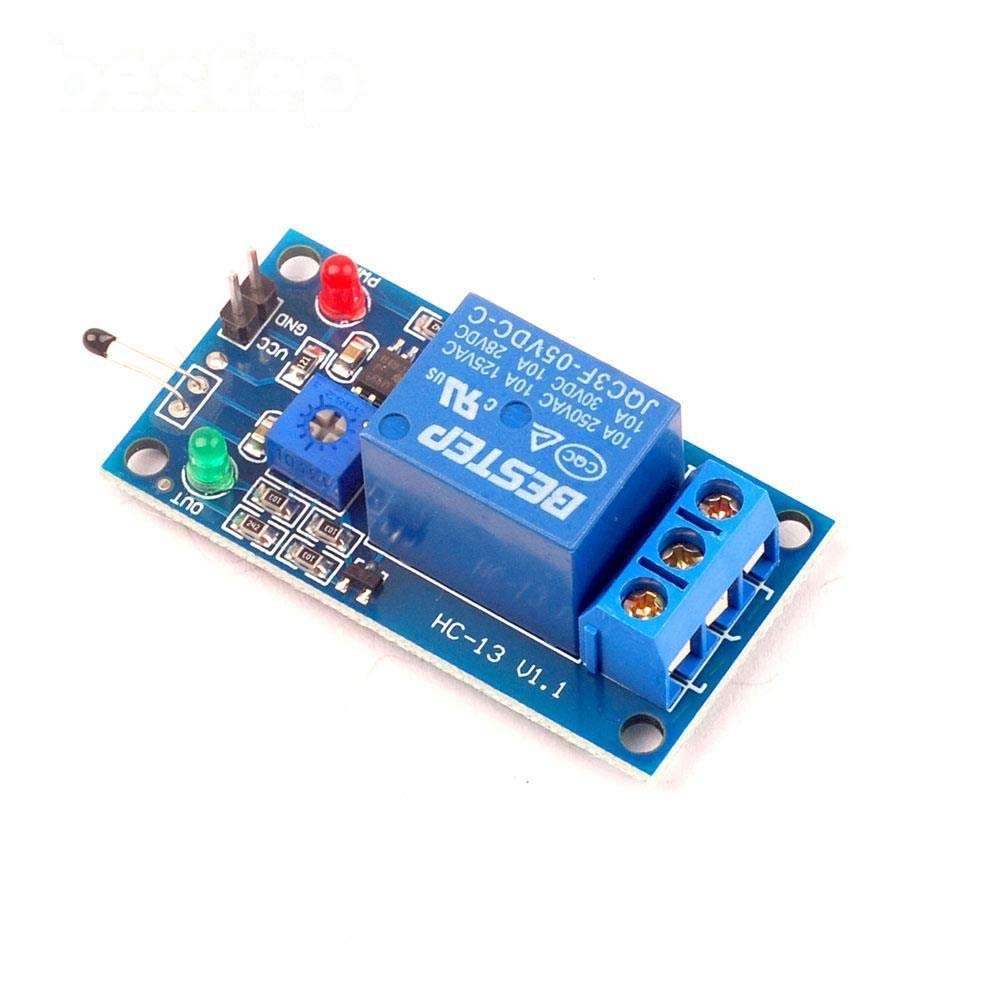

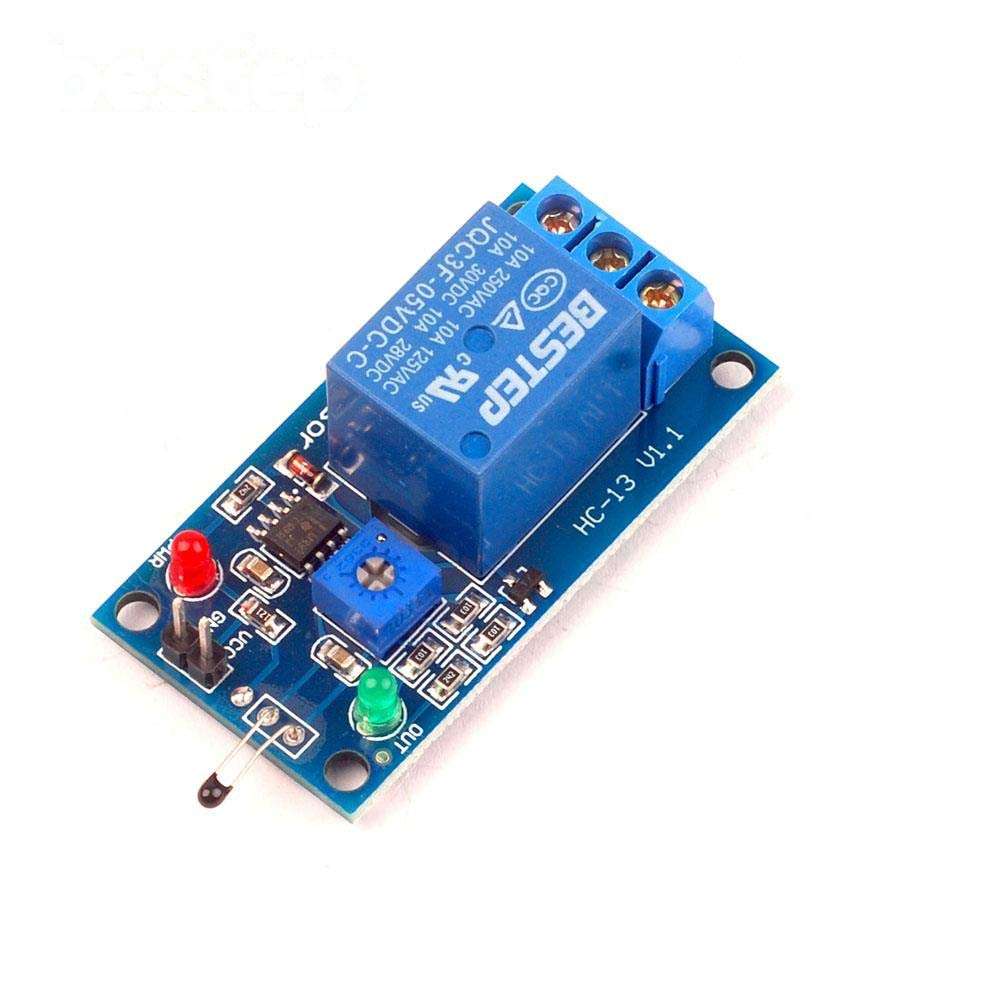

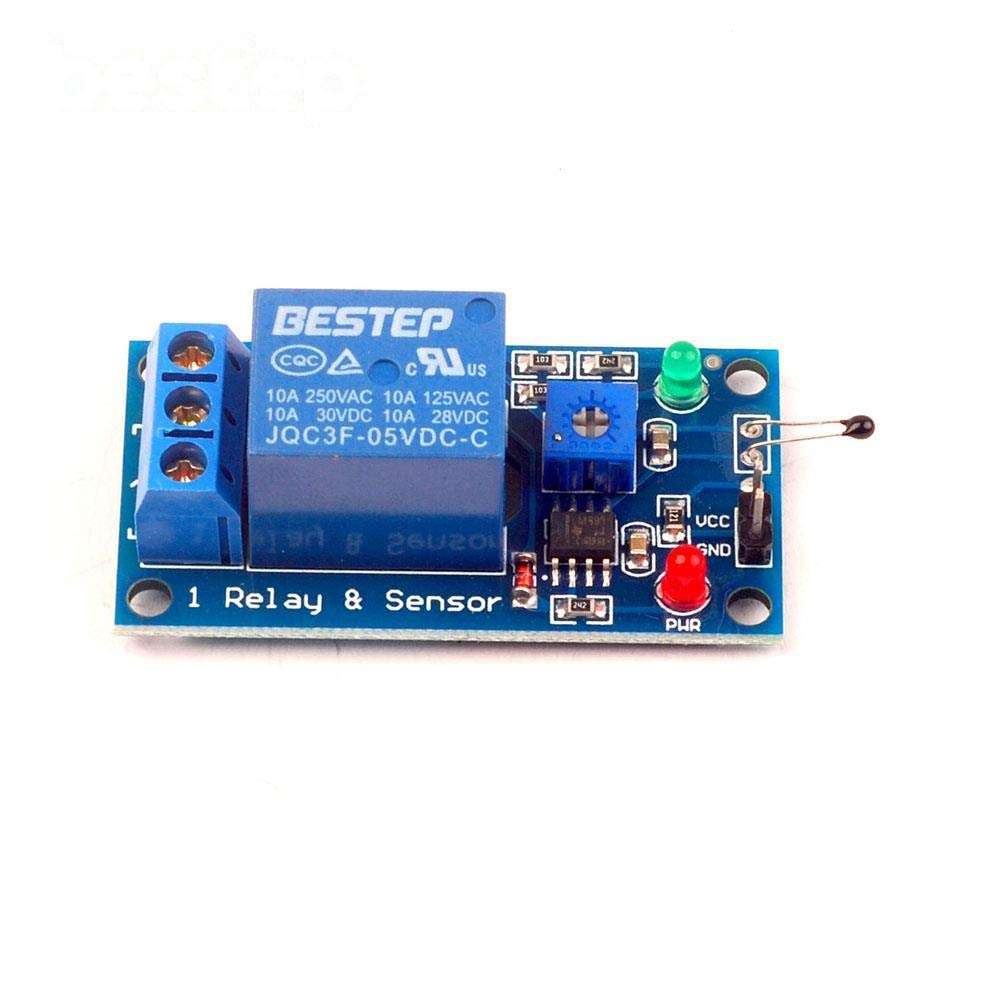

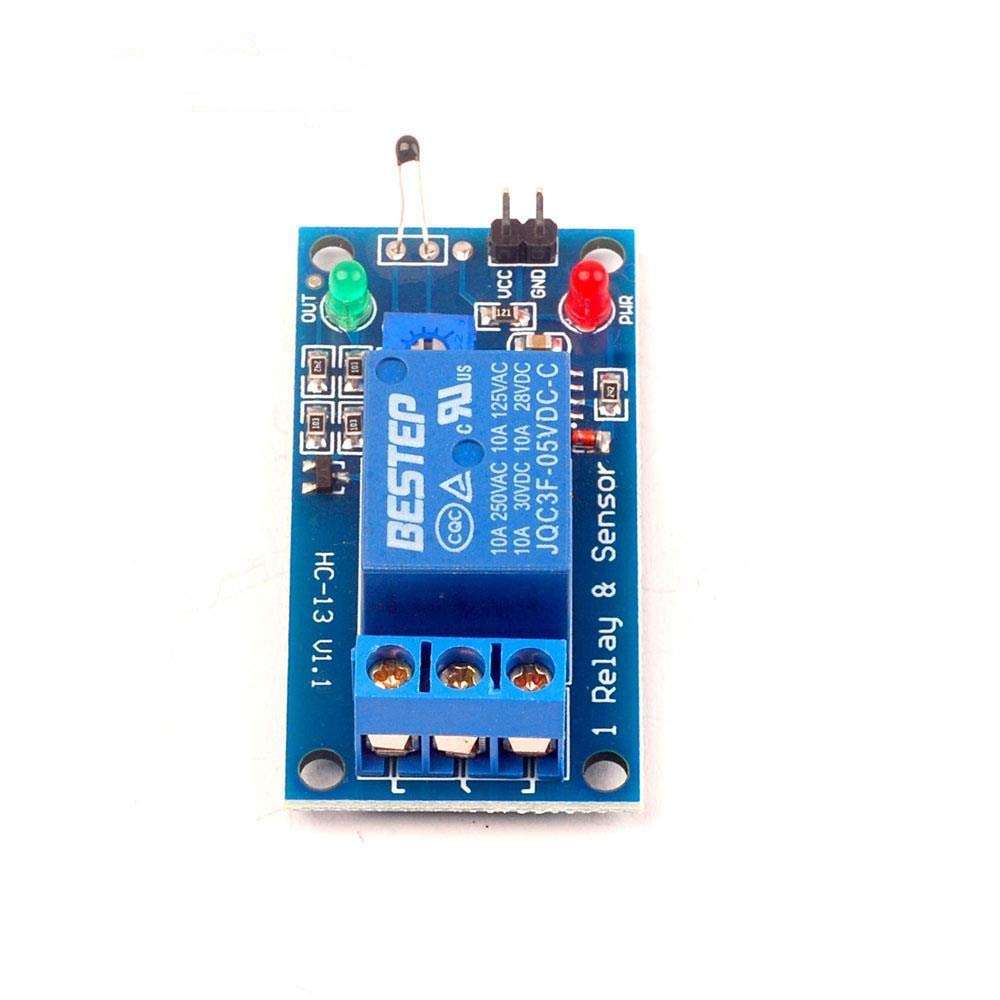

Module features:
1. Automatically control the temperature, start below the temperature, or start above the temperature. Select to start higher than the set temperature when the output terminal is normally open, and start normally when the output is lower than the set temperature;
2. The comparator output directly drives the relay, which can be connected to 220V AC or other equipment;
3. With potentiometer to adjust the temperature;
4. The sensor interface can be equipped with a pin and a thermal sensor with a lead;
5. Dimensions: 50x26mm, 19mm thick, with 4 3mm fixing bolt holes for easy installation.
Electrical parameters:
Supply voltage: 5VDC
Current: greater than 150mA
Load: 250V 10A AC or 30V 10A DC
