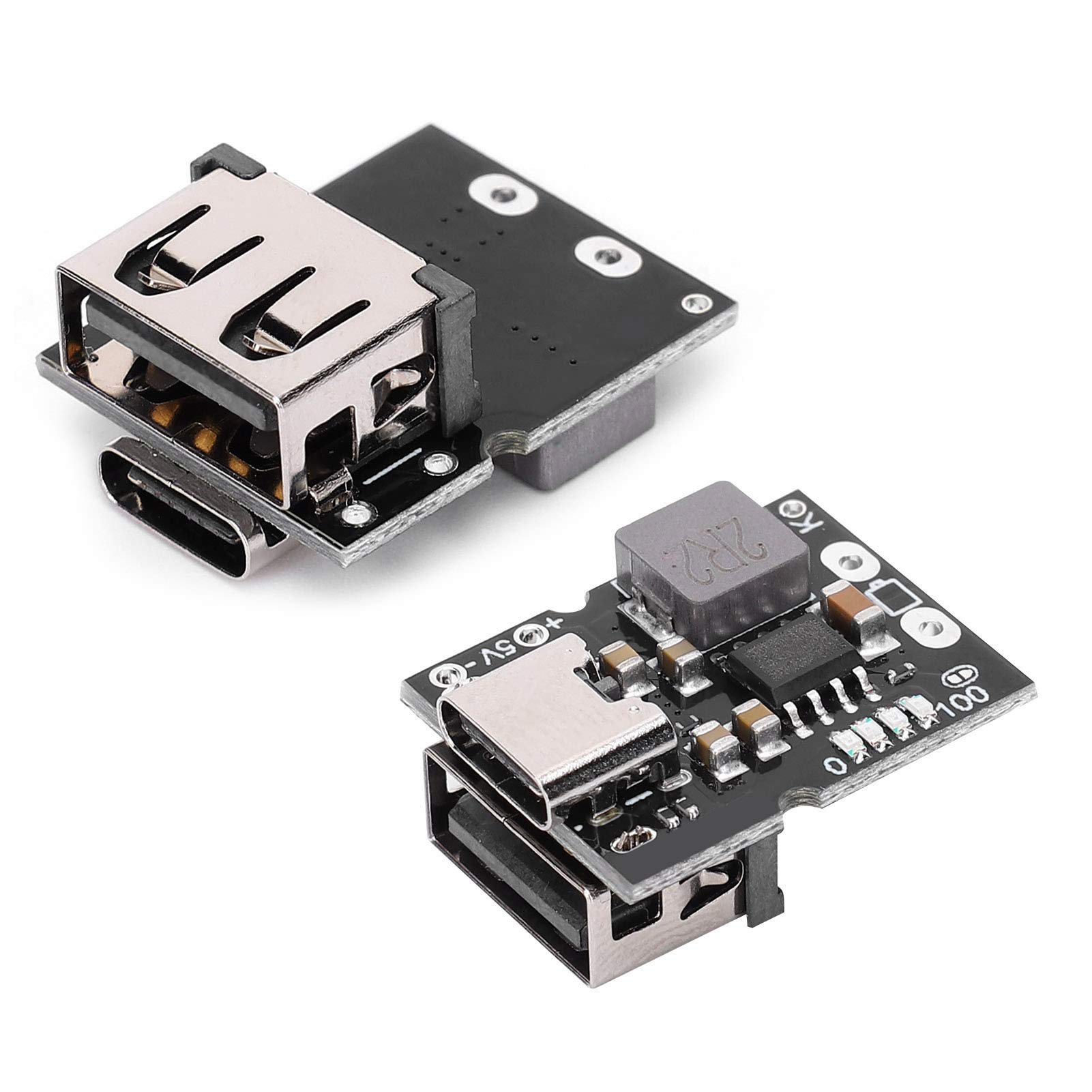

5V 2A Discharge Integrated Module, Lithium Battery and Discharge Module Type C Input Support 4.2/4.35V Battery (Standard Edition)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•When the load current is less than 50mA continuously, the output will be turned off. Support charging and discharging.

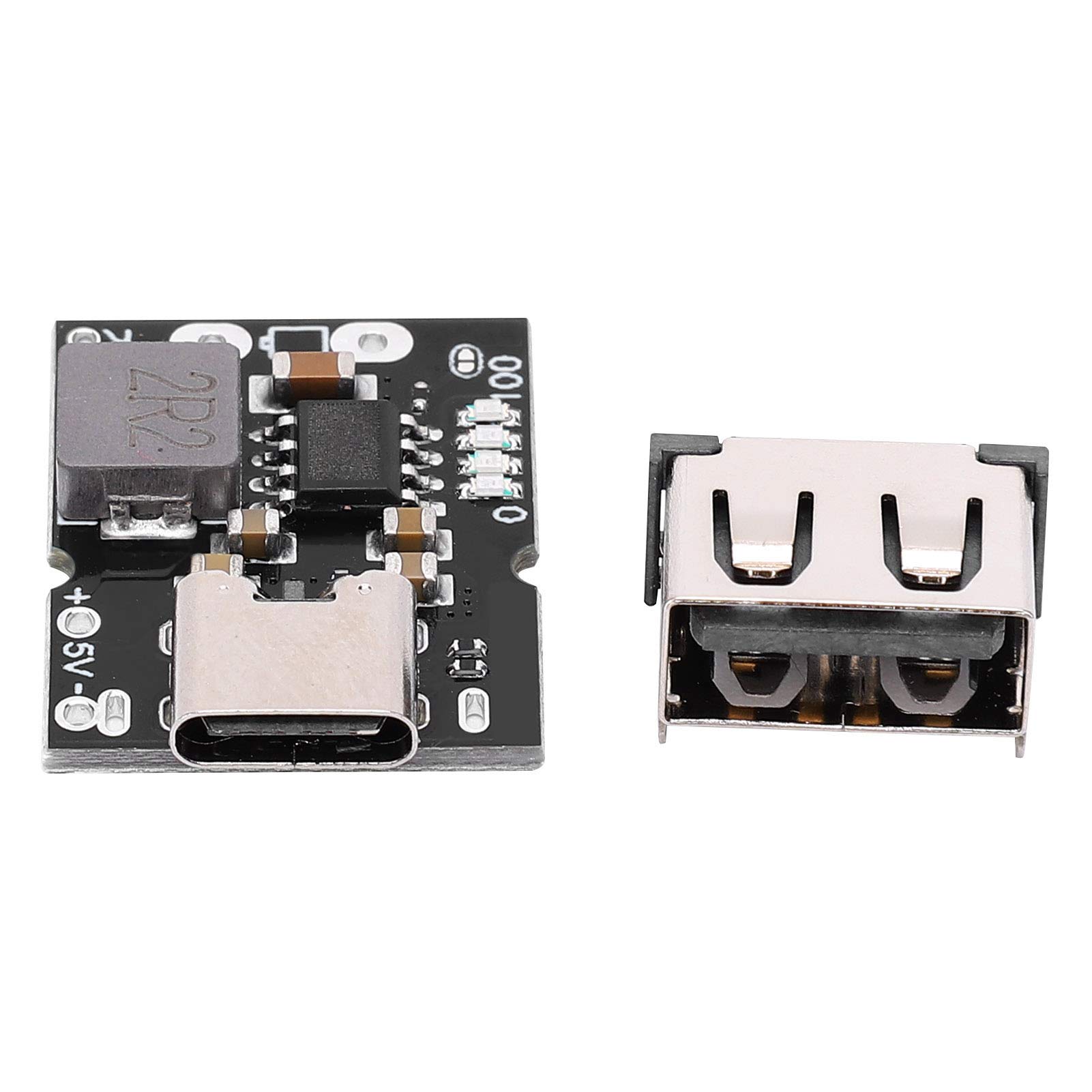

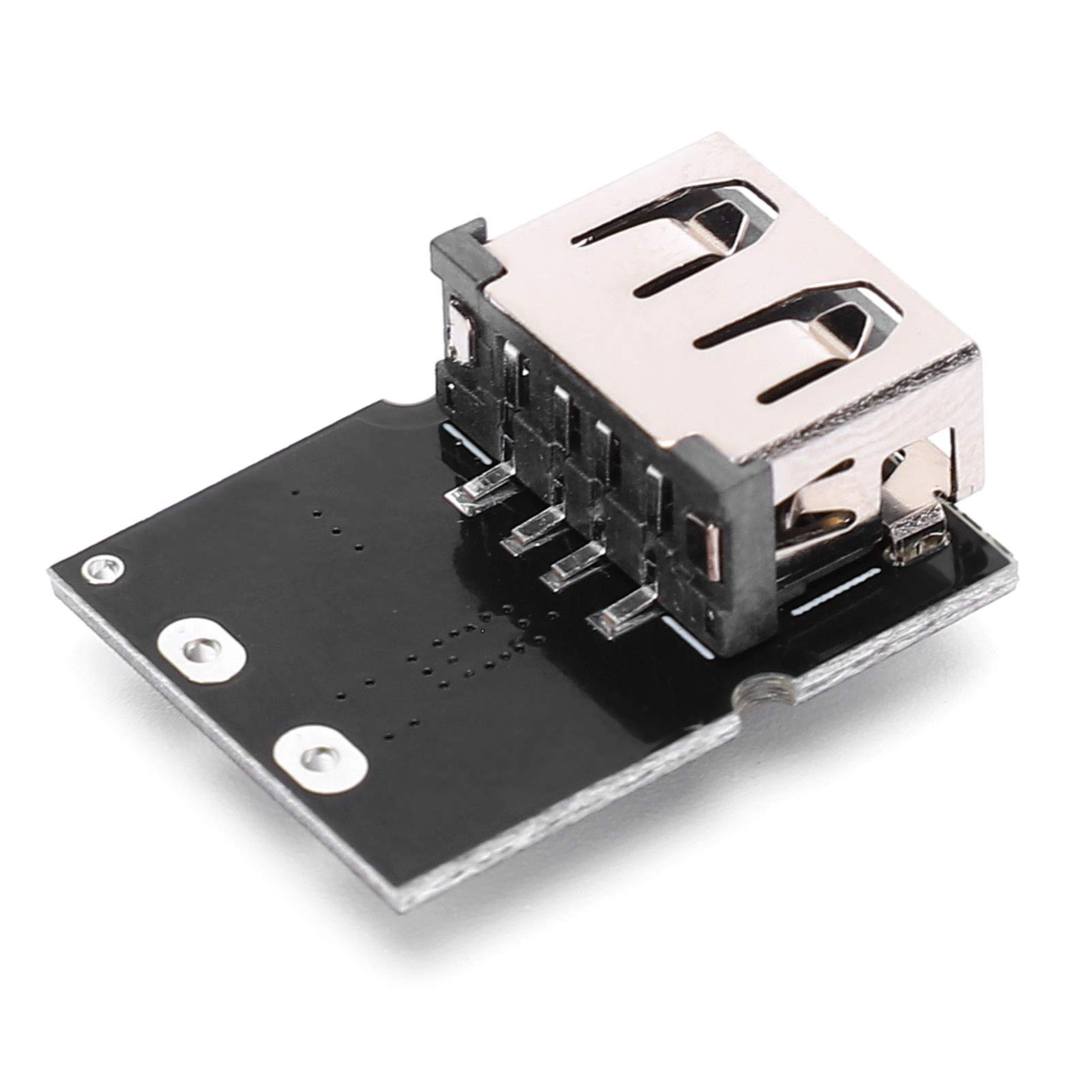

•USB-A female socket soldering position is provided on the back of the product, and the female socket can be installed manually.
•Use: Battery module supports external button, connect the button to K point and output negative terminal, short press to turn on power display and turn on 5V output, short press twice in a row will turn off power display and turn off 5V output.
•Auto termination: When the final voltage is reached and the current drops to 100mA, the cycle will be automatically terminated.
•Note: The cycle restarts when the battery voltage drops below 4.1V. When the battery voltage falls below 2.8V, the battery will be pre-charged with a current of 180mA.
