5PCS 2 Channel 12V Relay Module with Optocoupler High or Low Level Trigger Expansion Board for Raspberry Pi Arduino
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

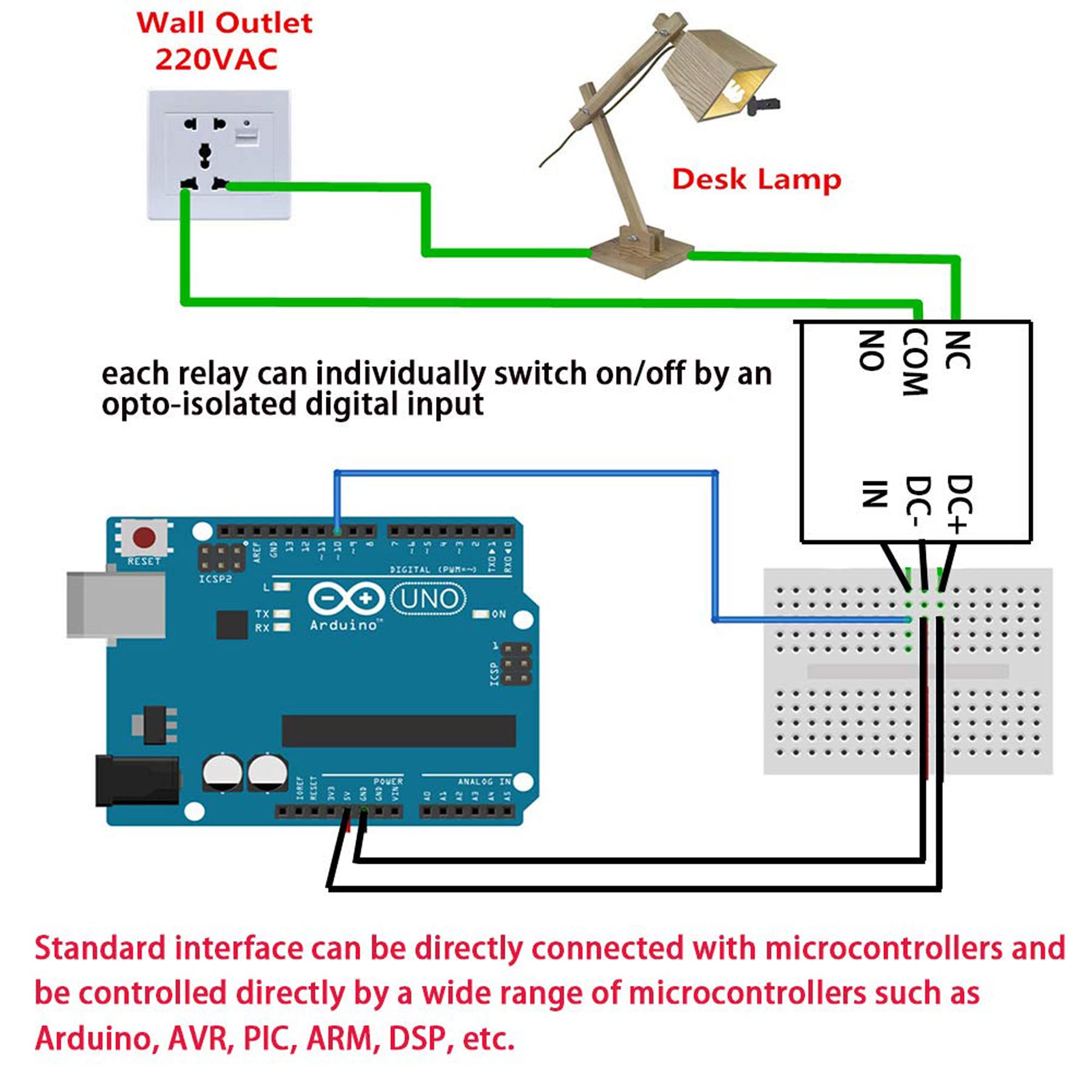

•It is 2 Channel Isolated 12V 10A Relay Module, each relay can individually switch on/off by an opto-isolated digital input, Standard interface can be directly connected with microcontrollers and be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, DSP, etc., very convenient.
•Equipped with high-current relay, maximum load: AC250V 10A, 15A 125VAC, DC30V 10A; Trigger current of opto-isolator: 5mA.
•RELIABLE: Fault-tolerant design, even if the control line breaks, the relay will not move; With optical coupling isolation, triggering more reliable, more stable.
•EASY to INSTALL: Equipped with screwed terminal plate and fixed bolt holes(diameter: 3.1 mm) on both sides for easy installation.

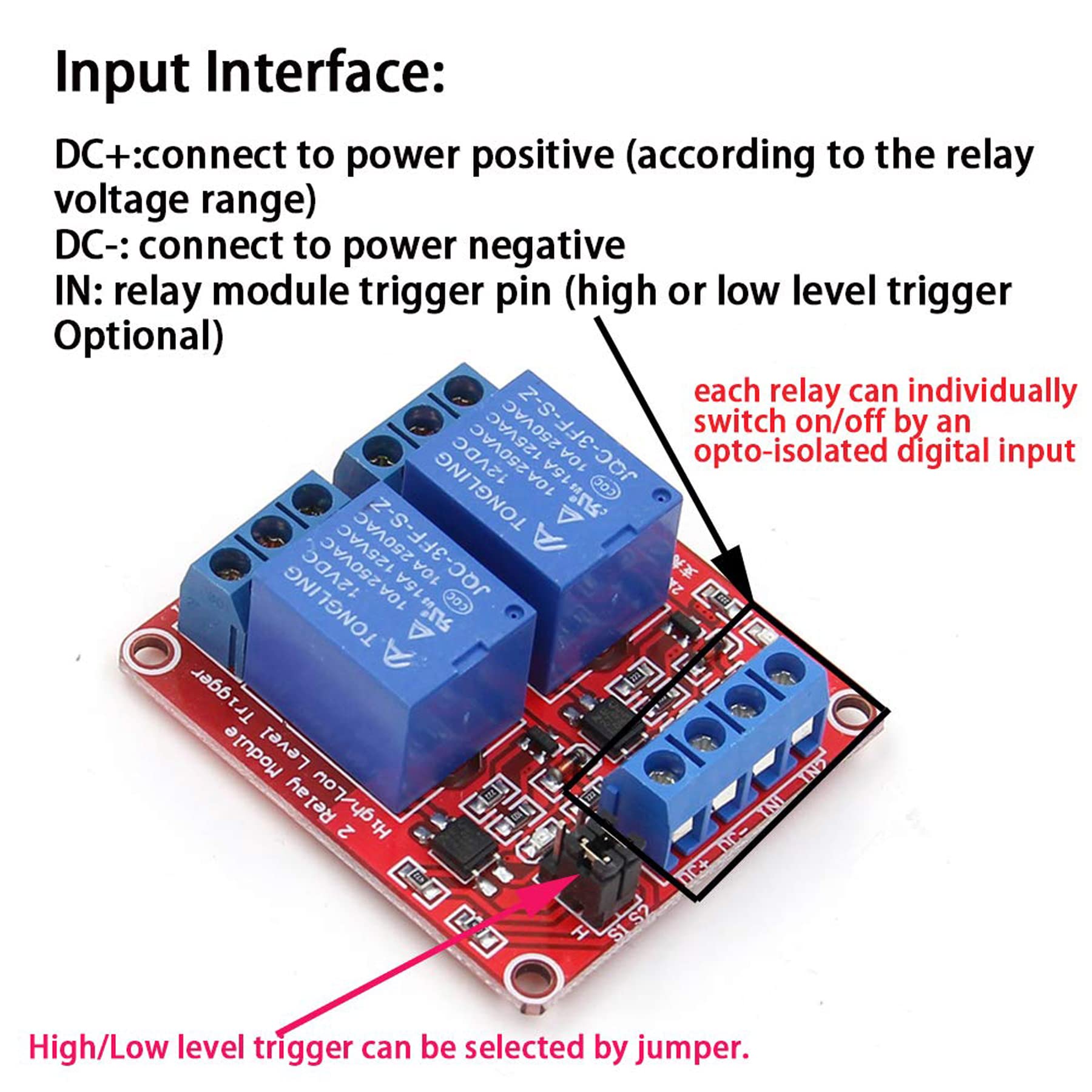

•High/Low level trigger can be selected by jumper. Very versatile, you can reverse the input logic with the jumper.
