4X Oculink SFF-8612 SFF-8611 PCIE PCI-Express 16x Adapter ATX | Shop The World
From USA
NewNGFF
4X Oculink SFF-8612 SFF-8611 to PCIE PCI-Express 16x Adapter with ATX 24pin Power Port for Mainboard Graphics Card
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

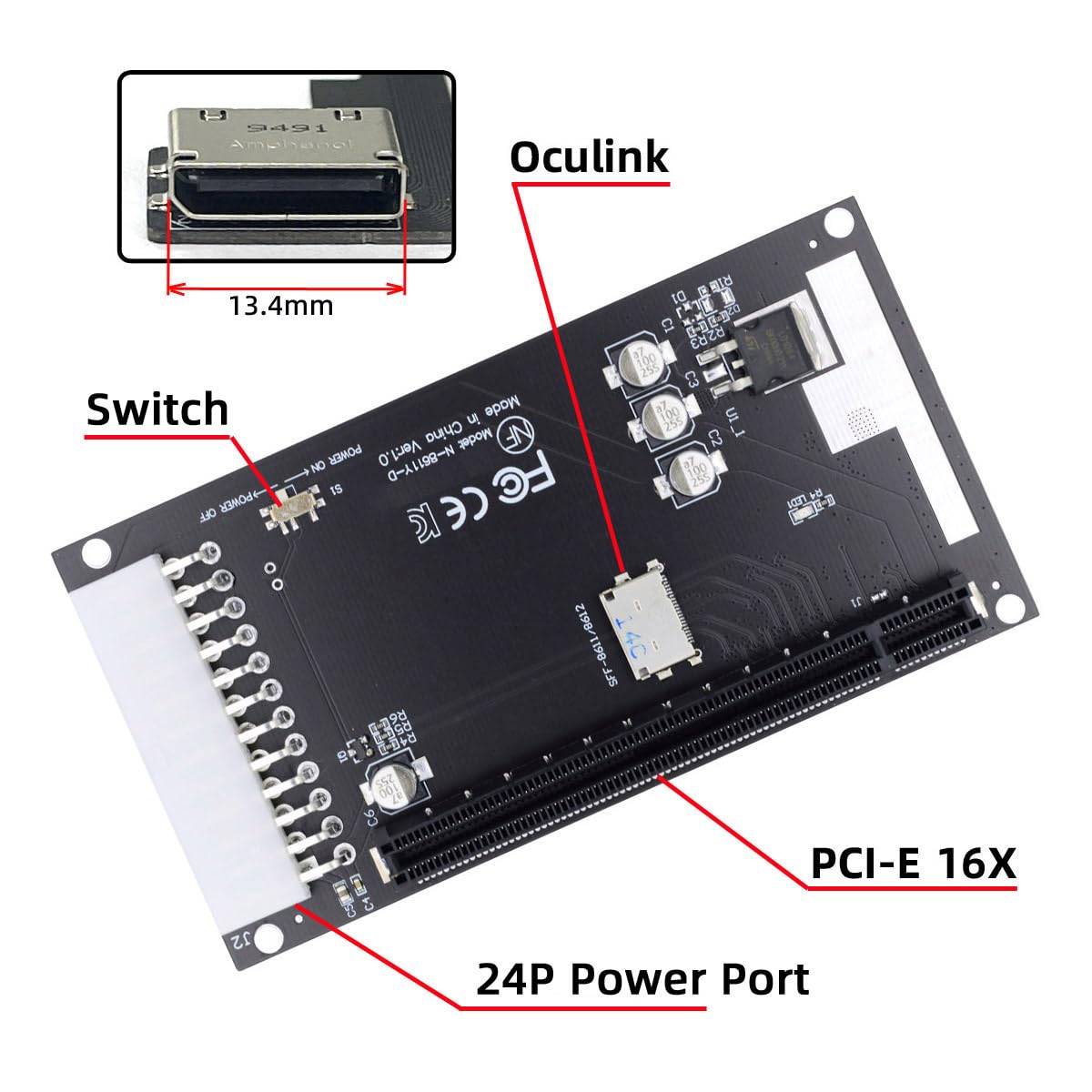

•Oculink 4x connectors are internal and external small form factor PCI-E connectors and cables optimized for the client and market.

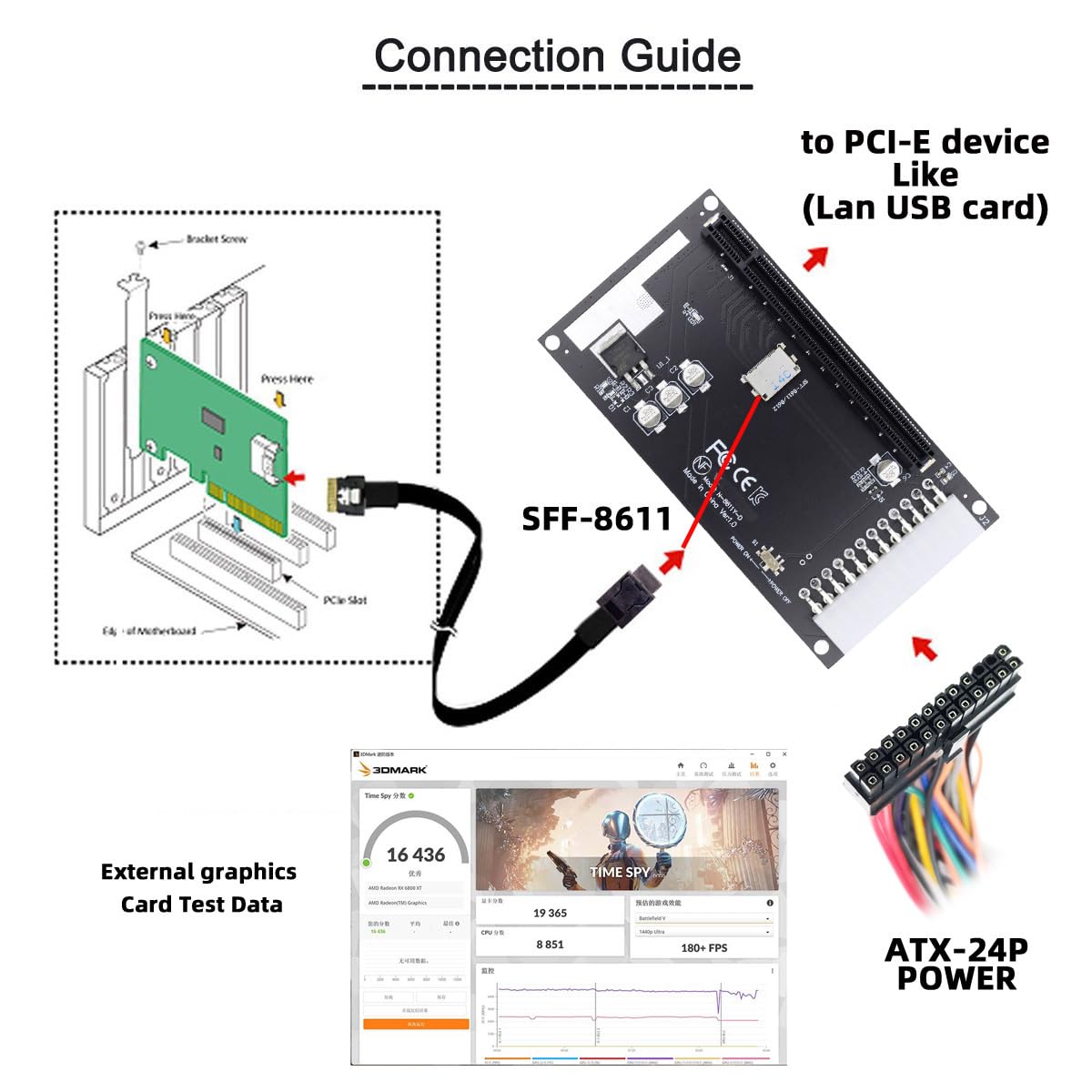

•This oculink pci-e converter enables belowing applications.One PCIE PCI-Express 16x 4x device can be connected,The converter can be installed into the system internally through the SFF-8611/8612 oculink interface.
•The converter support all standard PCI-E 16x 8x 4x card, like USB,LAN,1394,Audio,Graphics Card.

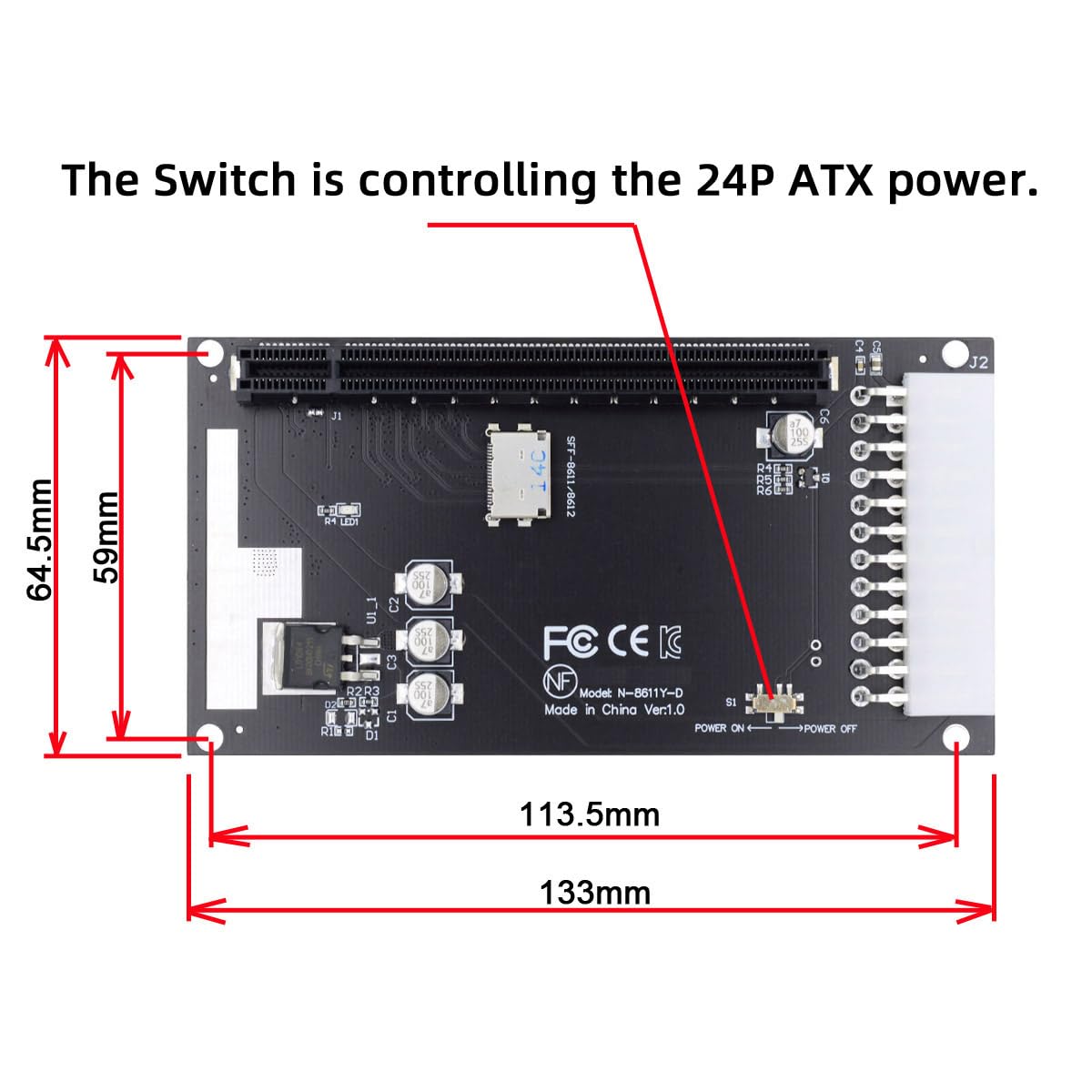

•The atx power port support 12V power. Please connect the extral power for your PCI-E card if the power is insufficient. (The switch is for ATX power)
•It transmits PCI Express 4.0 signals using the PCIE protocol; Support PCIE 4.0 data transmission, Data transfer rate up to 64Gbps, Support connecting GPU graphics card, SSD, expansion card, etc., backward compatible with PCIE 3.0.
