4G/3G/2G/GSM/GPRS/GNSS HAT Module Raspberry Pi /4B/3B+3B/2B/Ze | Shop The World
From USA
Newwaveshare

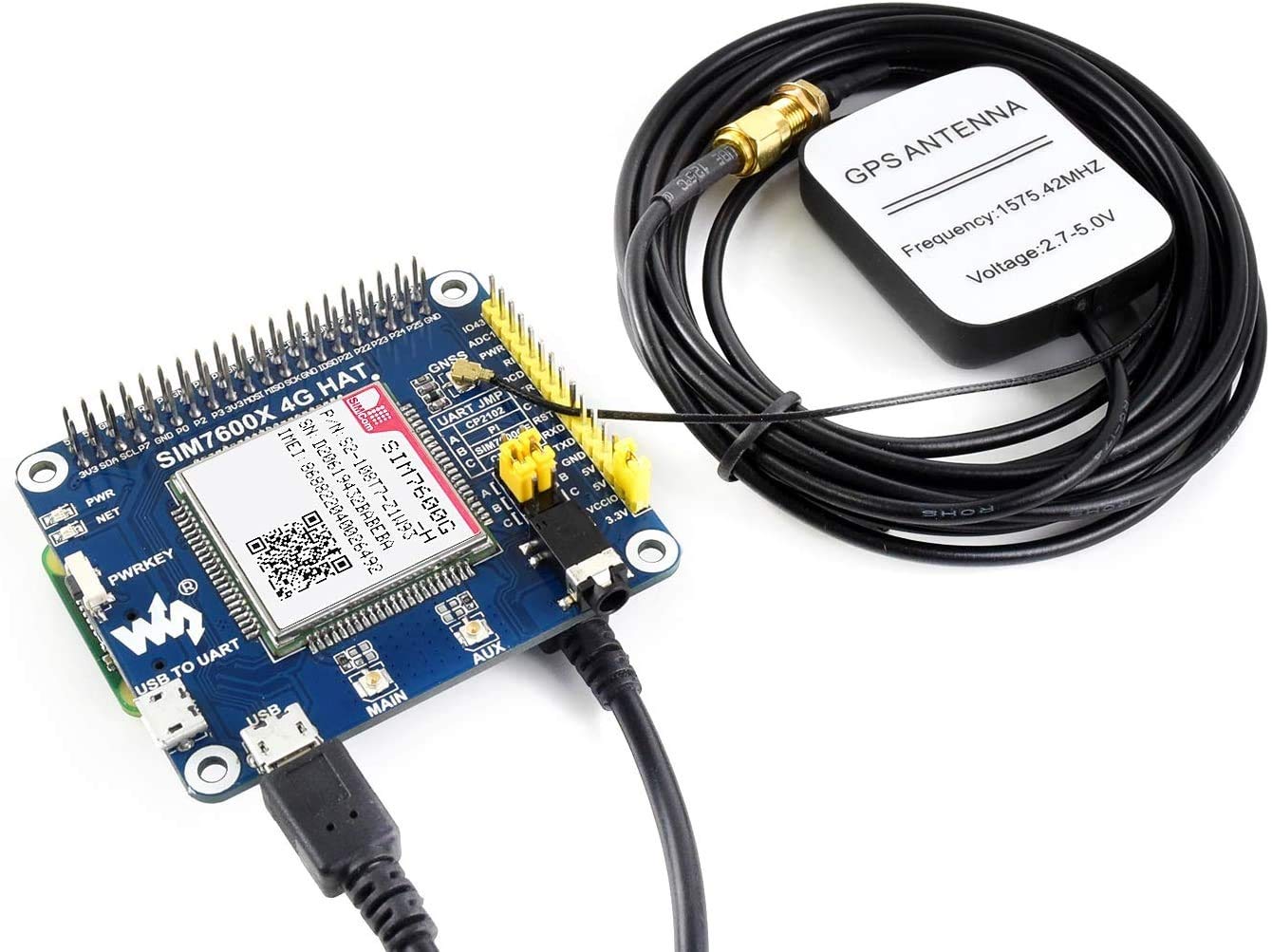

4G/3G/2G/GSM/GPRS/GNSS HAT Module for Raspberry Pi /4B/3B+3B/2B/Zero/Zero W/Zero WH/Jetson Nano Based on SIM7600G-H Support LTE CAT4 up to 150Mbps for Downlink Data Transfer,the Global Version
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•The SIM7600G-H 4G HAT with Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.Supports GPS, BeiDou, Glonass, LBS base station positioning

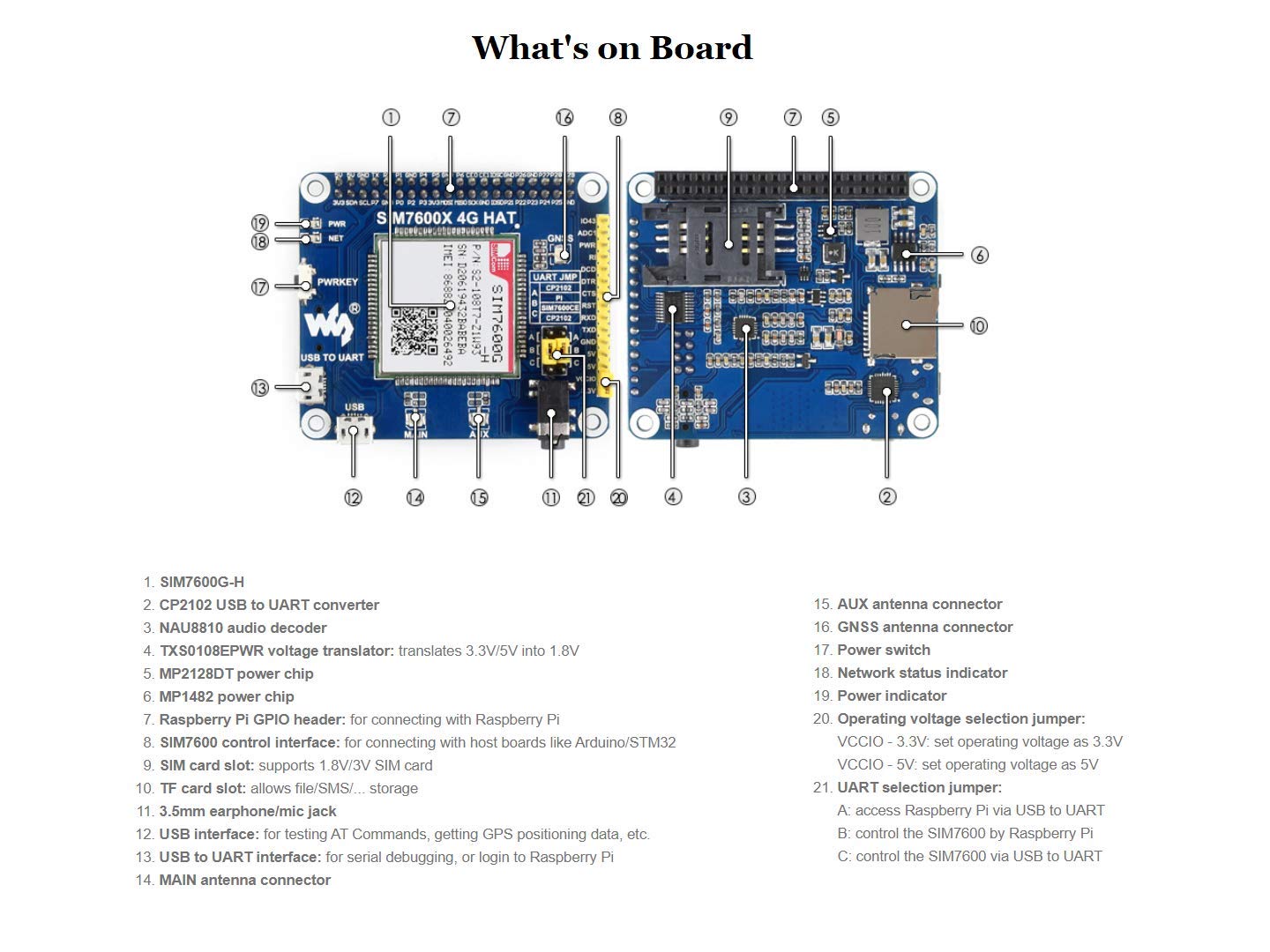

•Onboard USB interface, to test AT Commands, get GPS positioning data, and so on.Onboard CP2102 USB to UART converter, for serial debugging.Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper.Breakout UART control pins, to connect with host boards like Arduino/STM32
•Baudrate: 300bps ~ 4Mbps (default: 115200bps).Autobauding baudrate: 9600bps ~ 115200bps.Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
•Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT.Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
