ITEM ID:AN_GSM_023

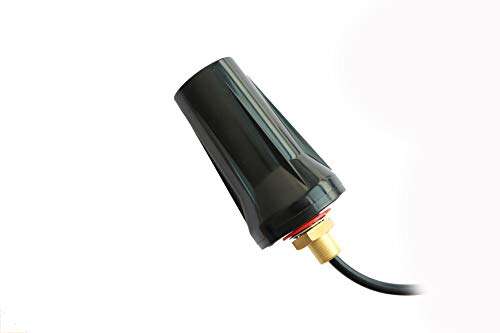

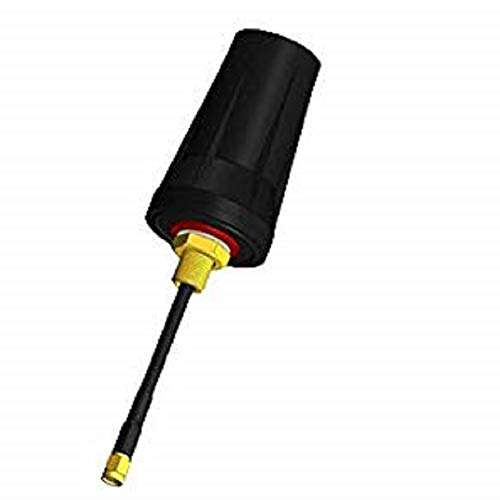

4G/3G/GSM Antenna 700/900/1800/2100 MHz Cylinder Screw Mounting

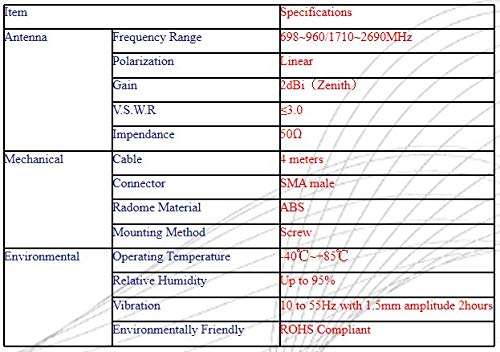

Frequency Range:698~960/1710~2690 MHz
Polarization:Linear
Gain:2dBi（Zenith）
V.S.W.R:≤3.0
Impendance:50Ω
Cable:9.8feet/3 meters
Connector:SMA male
Radome Material:ABS
Mounting Method:Screw
Operating Temperature:-40℃~+85℃
Relative Humidity:Up to 95%
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly:ROHS Compliant
【GSM/3G/4G FREQUENCY】:698~960/1710~2690MHz . Ideal for signal reception of GSM 2G/3G/4G wireless devices.
【PREMIUM QUALITY ANTENNA】: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!
【Multiple applications】: For industrial, commercial and Internet Of Things (IOT) applications such as: Hotspots, Kiosks, Vending, Point-of-Sale (POS), Machine-to-Machine (M2M), Video Surveillance (Cameras, DVRs, NVRs), Vehicles, SCADA, Telemetry, PLCs, RTUs, Digital Signage etc.
【IP67 WATERPROOF】: This antenna is completely waterproof (IP67) . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
【100% Satisfaction Guarantee】: We are committed to providing customers with the best product and services. If you have any question, please feel free to contact us and if the good is with any quality issue, we're happy to offer you a new one!
From USA
