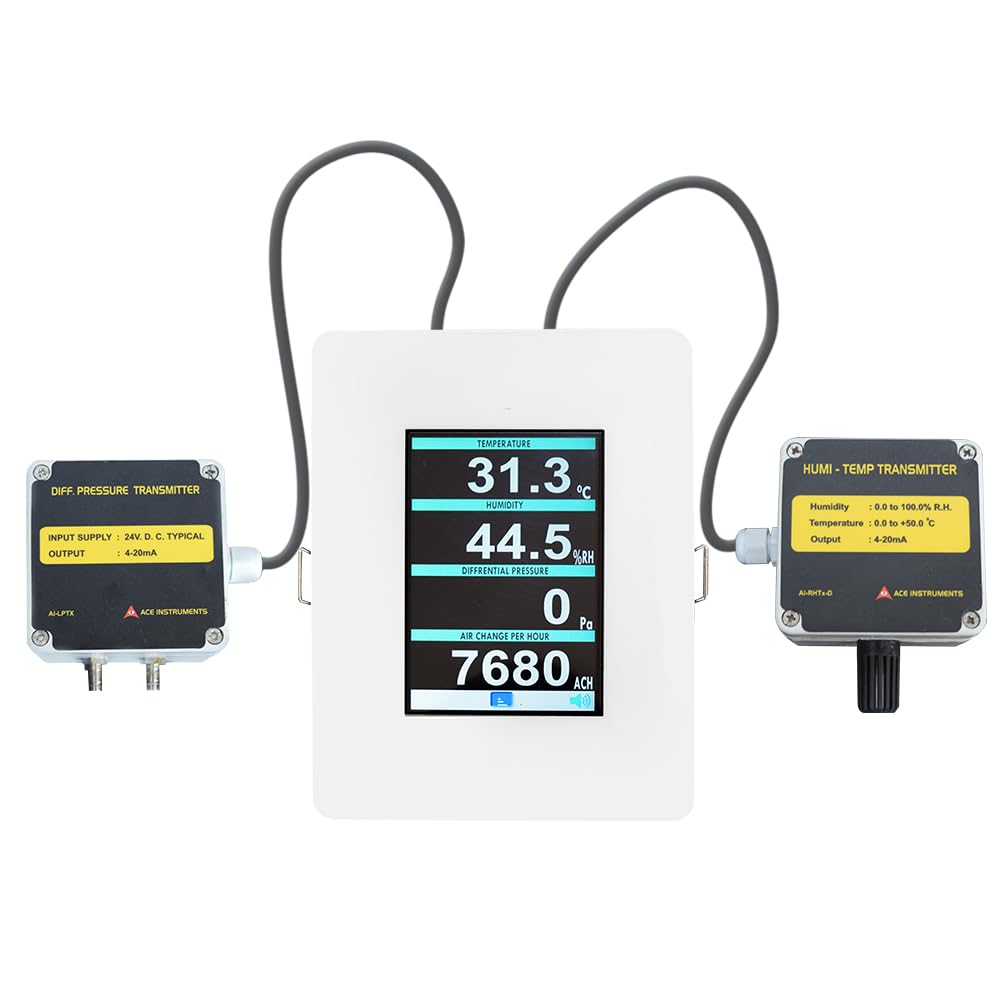

4 in 1 Smart Hospital Room Monitor with Touch Screen Display for Clean Rooms, Pharmaceuticals, HVAC Systems | Model: Al-CRS4-IA-TFT-5

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•High accuracy sensors
•5" full-colour TFT touch screen
•User-Friendly Interface
•Integrated buzzer alarm
•Measuring Parameters: Air Changes per Hour, Differential Pressure, Humidity, Temperature
•AHC Range: Standard O to 100 ACH, Size
•Temperature Range: -10 to 60°C / 14 to 140°F
•Temperature Accuracy: ±0.5°C
•Humidity Range: 0.0 to 99.9% RH for Humidity (Non-condensing)
•Humidity Accuracy: ±1.8% R.H.

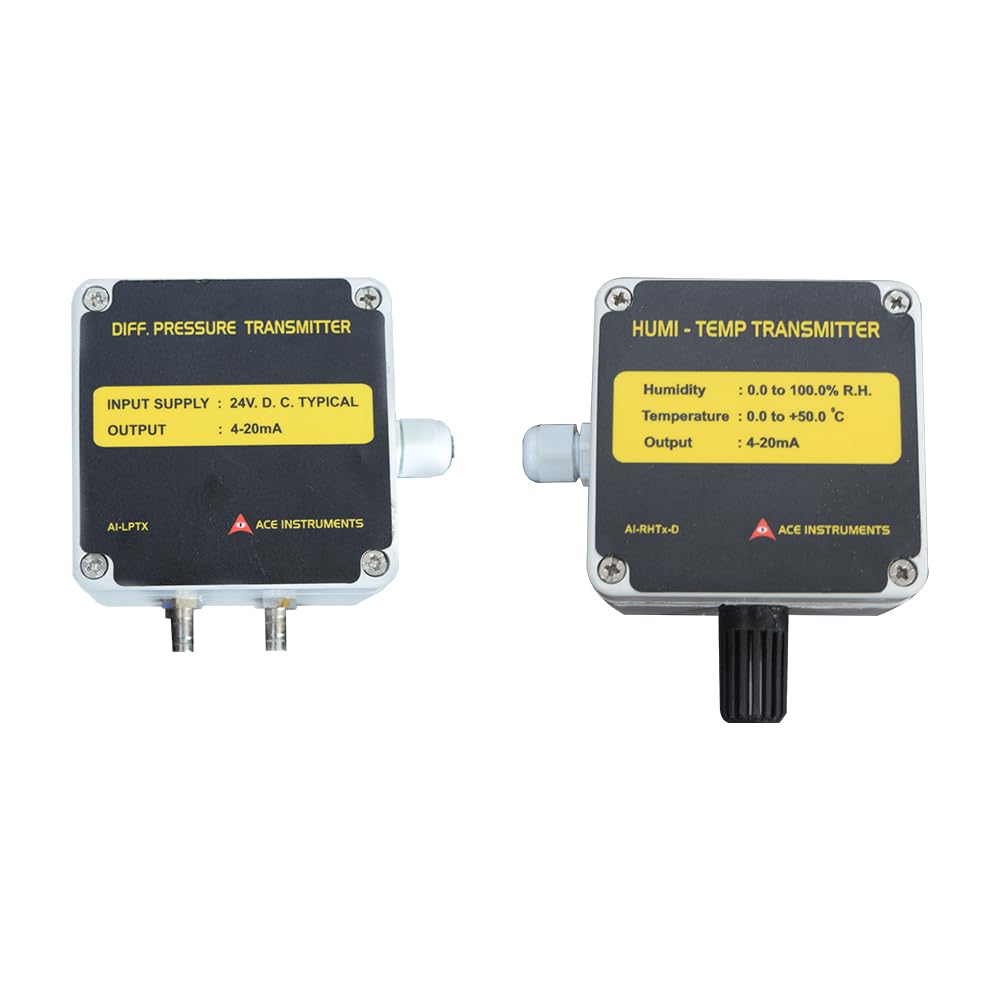

•External ACH Transmitter
•Display: Multi-row (4 Rows) 5” Full-Colour Touch TFT Display
•Sensors: Digital Combination sensor for Temperature & Humidity with 5 mtrs. Cable.

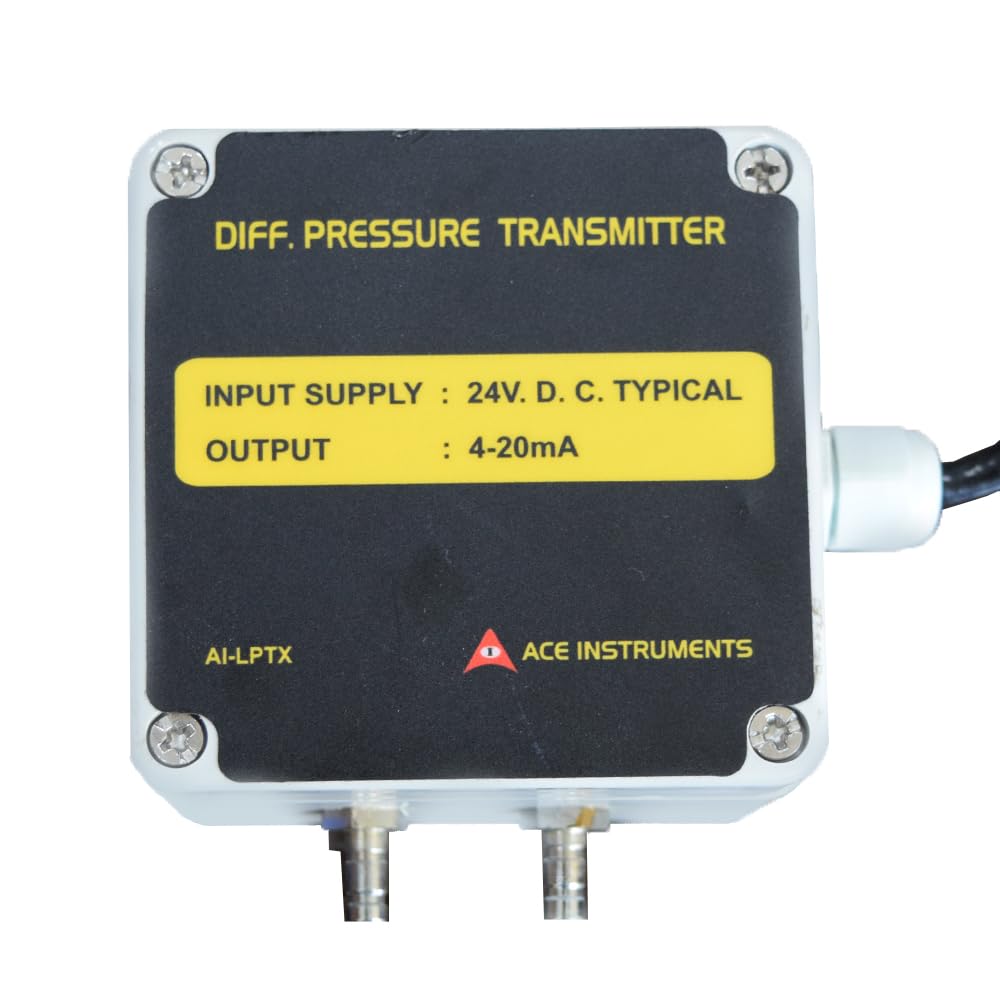

•In Built Differential Pressure Sensor with 2 Nos. Hose Nipples (+ve & -ve) at the back
•Communication: RS485 MODBUS Communication for BMS & SCADA Systems
•Alarm: In-built buzzer for alarm alert for each channel on process limit violations
•Power Supply: 12-24VDC, with 110-230 VAC, 50-60Hz Adaptor provided
•Enclosure: Modular Wall Mountable with Stainless Steel Front Flush Plate & M.S. Back Box
•Supply Scope: 1 unit of ACH Monitor with External Transmitter, 12-24VDC Adapter, Type A (US Socket) Instruction manual, Calibration certificate
•Applications: Hospital Isolation Rooms, Pharmaceuticals, HVAC, Hospital Operation Theatres Rooms, Clean Rooms.
