3pcs MAX98357 I2S Class D Audio Amplifier Module Support ESP32
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

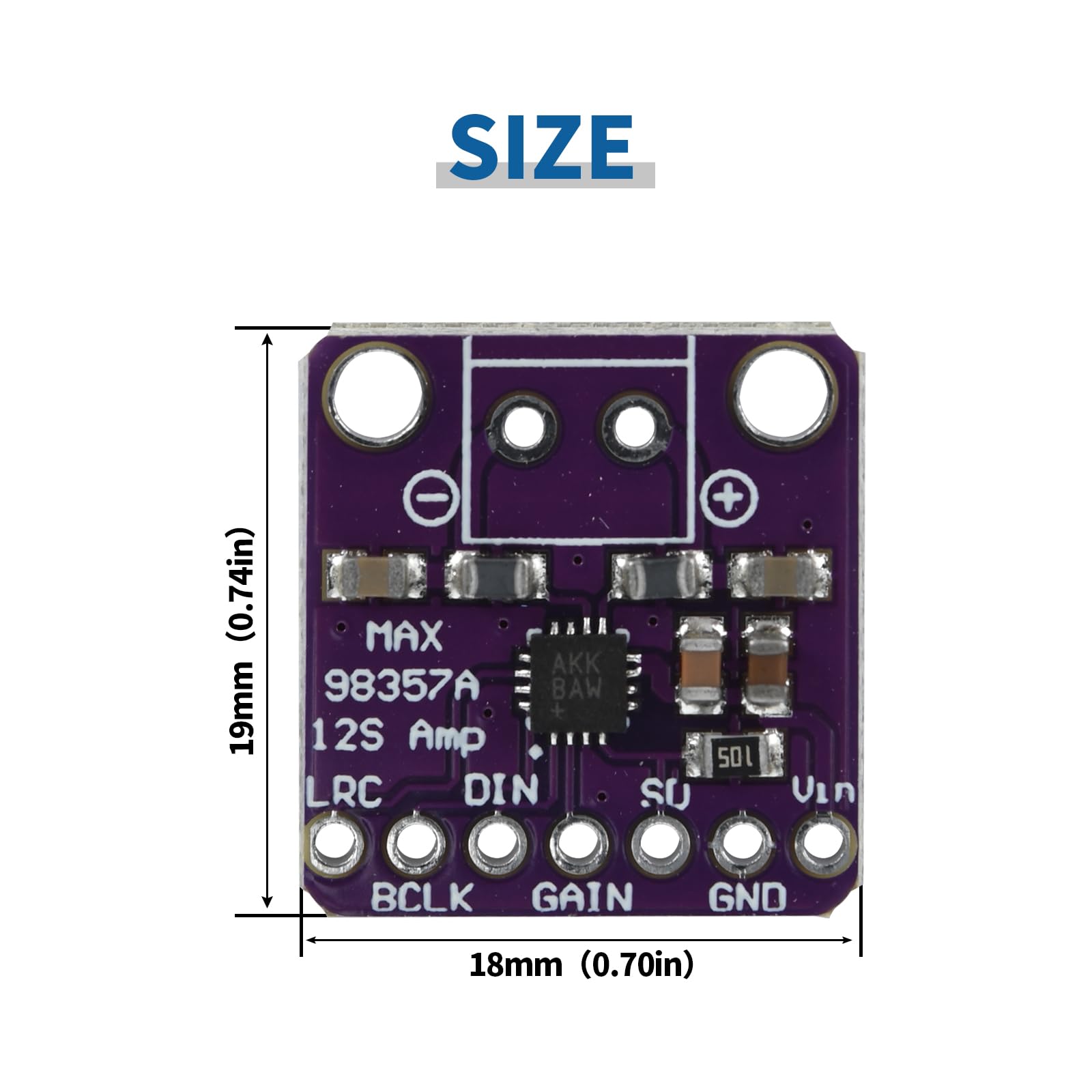

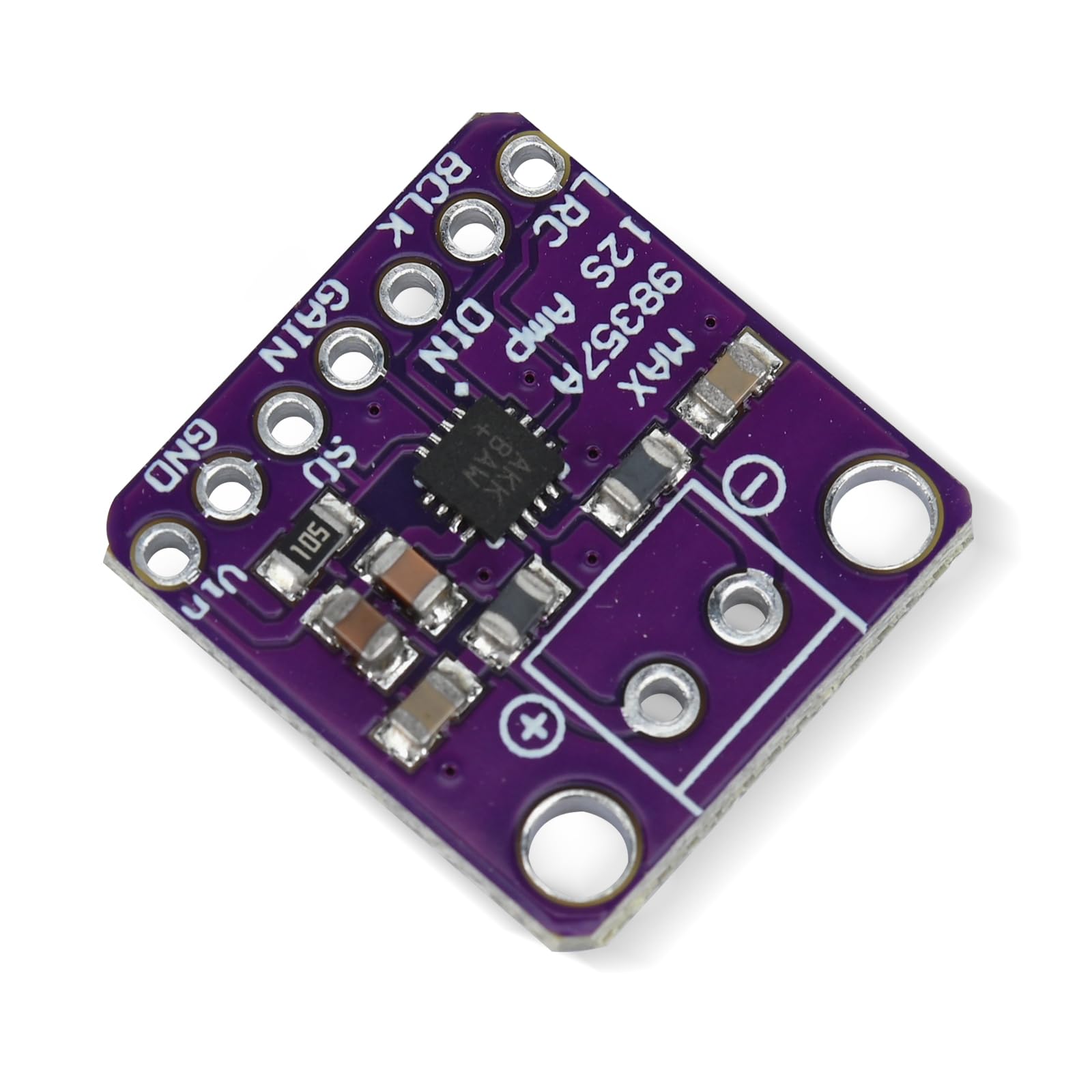

•【MAX98357 I2S High-Fidelity Audio Amplifier Module】 An I2S-enabled audio amplifier board that delivers up to 3 watts of power.
•【Parameter】Output Power: 3.2W at 4Ω and 10% THD / 1.8W at 8Ω and 10% THD; I2S Sampling Rate: 8kHz - 96kHz; Class D Gain Optional:3db / 6db / 9db / 12db / 15dB; No master clock (MCLK) required .
•【Class D MAX98357 Filterless Audio Amplifier Board】 A cutting-edge Class D amplifier board that requires no external filters, offering a seamless audio solution.
•【Seamless Integration and Versatility】Designed for plug-and-play operation, it supports 35 unique clock signals and 128 digital audio formats, all configurable automatically from a single power source.
•【Compatibility with Advanced Microcontroller Systems】Ideal for microcontrollers featuring I2S audio output, such as Arduino, and ESP32, offering a wide range of applications in development and prototyping.
