Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

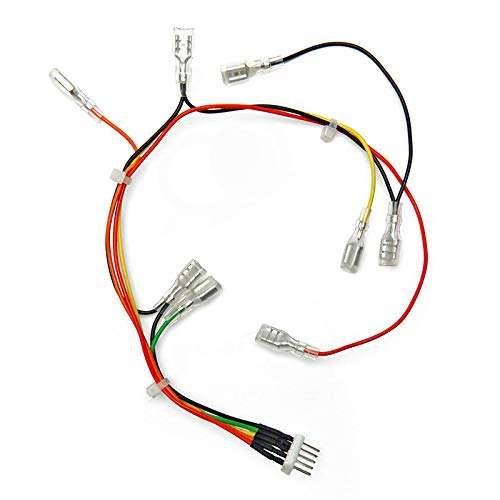

•This conversion harness is suitable for any joystick that features 4.8mm (.187") microswitch terminals.

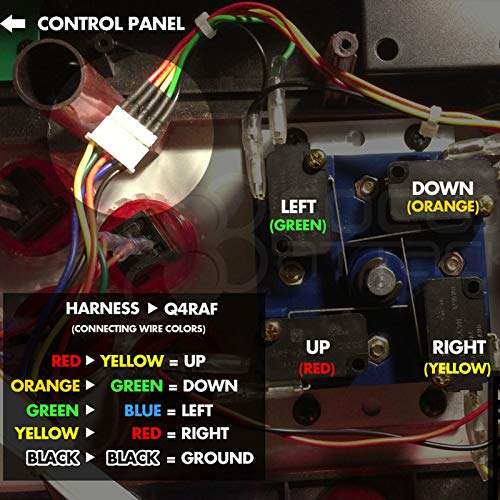

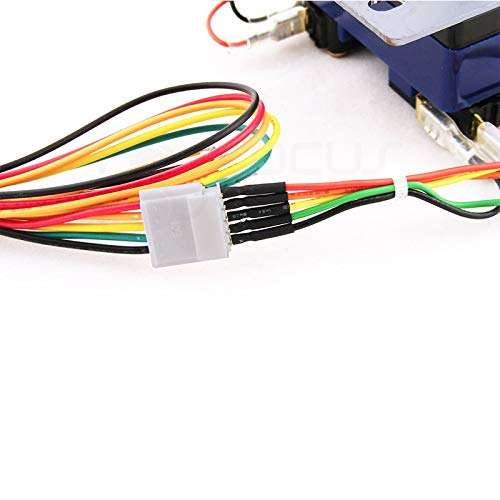

•The 4.8mm (.187") microswitch terminals 8-Pin to 5-pin Conversion Harness is the perfect choice for connecting joysticks with .187” microswitch terminals and interfacing them to a Sanwa JLF-H harness. Simply connect the harness to the .187” terminals on the joystick microswitches and the other end of this harness will slide into the existing Sanwa JLF-H or JST-XH harness in your fightstick.

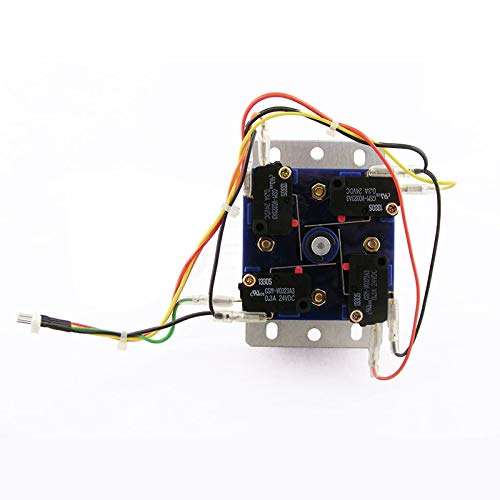

•For microswitch based joysticks, each joystick has 4 x microswitches and each microswitch requires a separate ground and signal wire connection. This is different to a Sanwa JLF series joystick, which has its microswitches soldered on to a PCB and connects via a JLF-H 5 pin harness.
•By using this 8-Pin to 5-pin Conversion Harness, you can interface most joysticks with .187” microswitch terminals through to a Sanwa JLF-H or JST-XH cable, which makes connection simple.
•Interfaces to a Sanwa JLF-H or JST-XH cable. Converts joysticks with standard .187” microswitch terminals for use with a Sanwa JLF-H or JST-XH cable.
From USA
