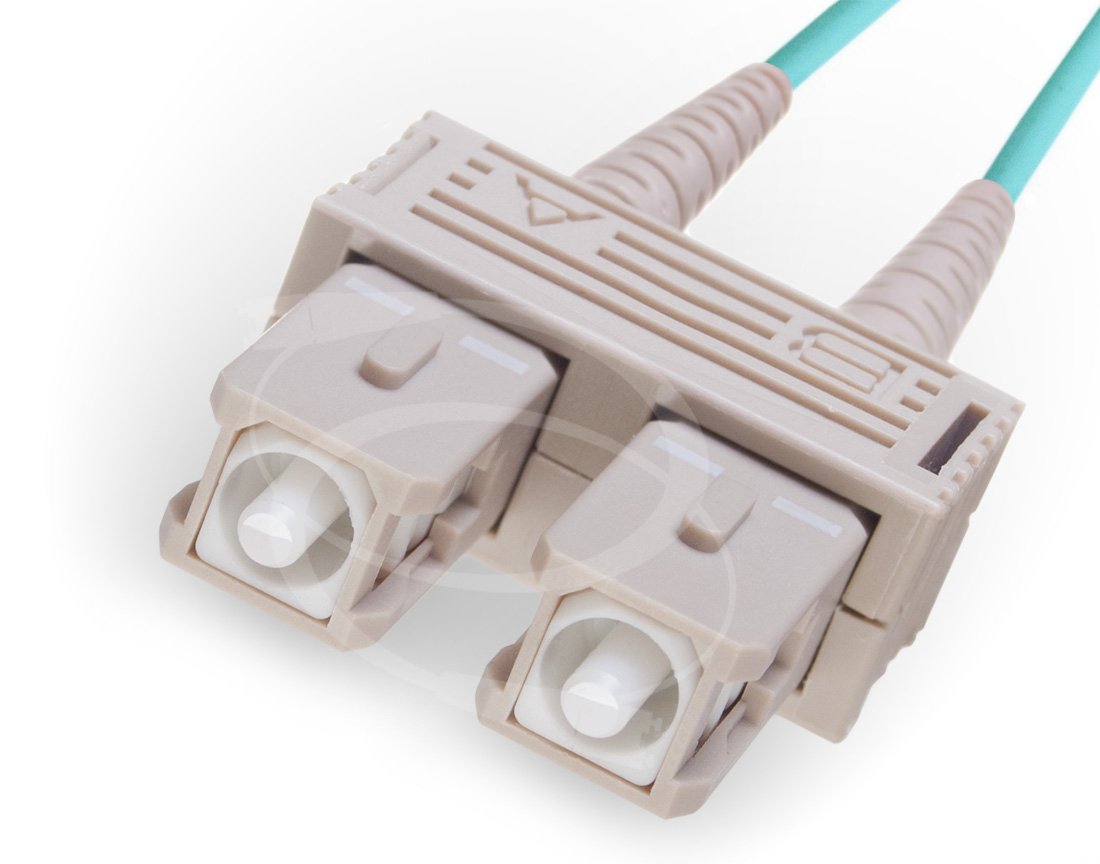

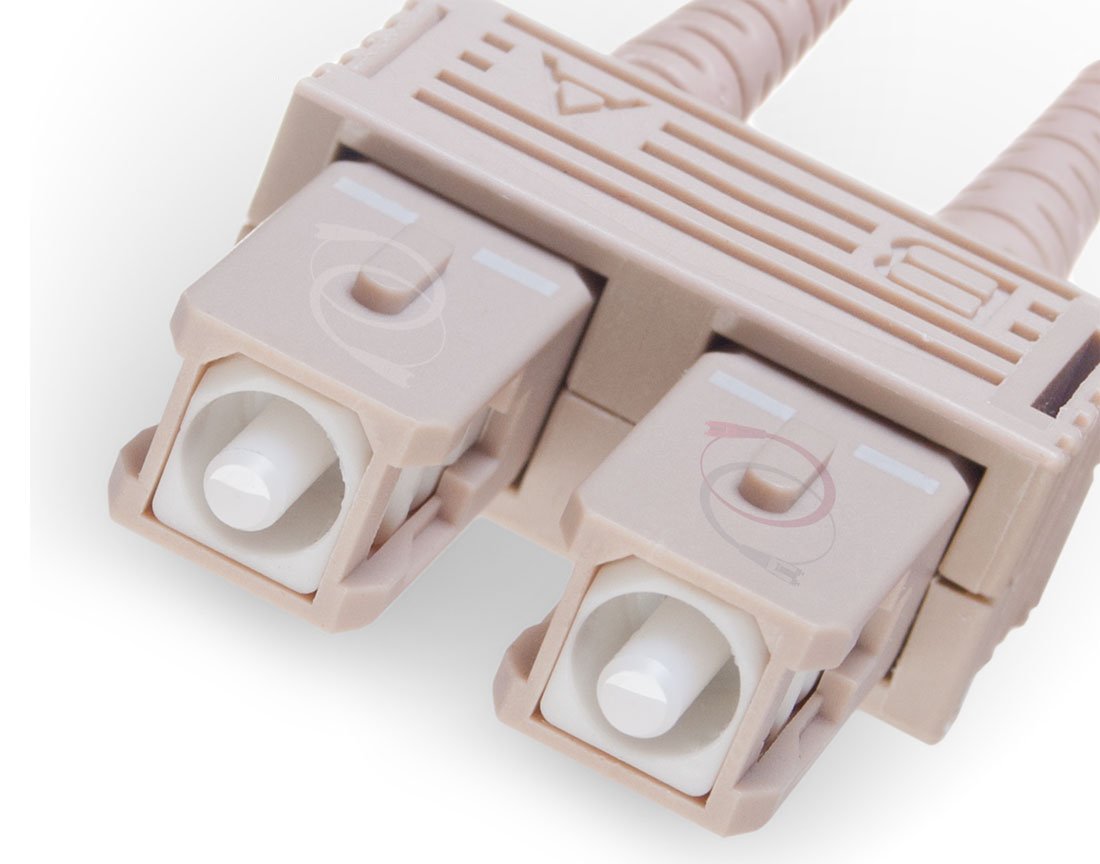

1M OM4 LC SC Fiber Patch Cable | Bend Insensitive Plenum 100G Duplex 50/125 LC to SC Multimode Jumper 1 Meter (3.28ft) | Length Options: 1M-300M | FiberCablesDirect - Made In USA | ofnp mmf lc/sc aqua
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Fiber Cable Description: OM4 LC to SC Fiber Cable 1 Meter
•Made In USA, Bend Insensitive, Plenum, 100Gig, Duplex, Laser Optimized Multimode Fiber (LOMMF), Jumper Cord. Corning 50/125 optical fiber core/cladding. ceramic ferrule LC/SC fiber connectors. High bandwidth fiber for high speed, low loss, data transmission. Aqua, 2.0mm outer diameter, jumper with zip-cord
•Fiber Patch Cable Details: 1 Meter (3.28 feet), Duplex (2 fiber), 2.0 mm O.D., Zip-cord Reinforced, LC to SC Terminated, Low Smoke Zero Halogen (LSZH), LOMMF Patch Cable / Jumper Cord.
•Core / Cladding: Corning 50µm (micron) diameter fiber core / 125µm diameter cladding (1 micron is 1 one-millionth/1 meter). The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core & cladding.
•Optical Modality Details for OM4 Ethernet Over Multimode Fiber: 3500 / 4700 MHz-km Modal Bandwidth 850nm / 1300nm
