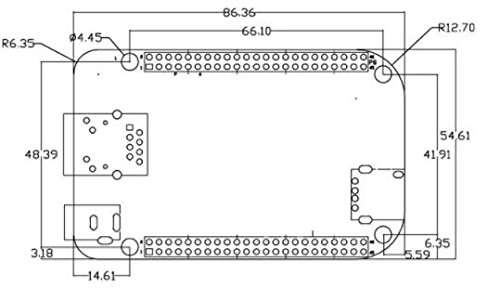

Product parameters: Temperature range: -20 ℃ ~ +85 ℃ Product Size: 86.36 mm × 54.61mm Ambient humidity: 20% to 90% (no condensation) Input power: 5V AM3358 Processor: Integrated 1GHz ARM Cortex-A8 core Integrated NEON SIMD coprocessor Integrated SGX530 graphics engine Integrated programmable real - time unit subsystem Integrated 32KB instruction cache and 32KB data cache, support parity Integrated 256KB L2 cache, support error check code Onboard memory: 4GB 8-bit eMMC onboard memory (rev. 2) 512MB DDR3 SDRAM memory Onboard interface: An HDMI D type interface (16-bit color output, support for audio output) An LCD interface (supports 24-bit output, P8 expansion interface leads) A 10 / 100M Ethernet interface (RJ45 connector) A high-speed USB 2.0 OTG interface with integrated PHY (Mini USB Type B connector) A high-speed USB 2.0 HOST interface with integrated PHY (USB Type A connector) A TF card interface (compatible with SD / MMC) A 3-wire debug serial port (6-pin 2.54 pitch connector) Two expansion interfaces, expandable LCD, UART, eMMC, ADC, I2C, SPI and PWM interfaces A JTAG interface (20-pin standard interface, default un-welded connector) Button and LED: A start selection button A power button A reset button An LED power indicator Four user-defined LED lights
